BioPAT® Conductivity | pH pipe with plug 3/8” HB-HB

Tech Support Documents
BioPAT® Conductivity | pH pipe with plug 3/8” HB-HB BioPAT® Conductivity | pH pipe with plug 3/8” HB-HB BioPAT® Conductivity | pH pipe with plug 3/8” HB-HB

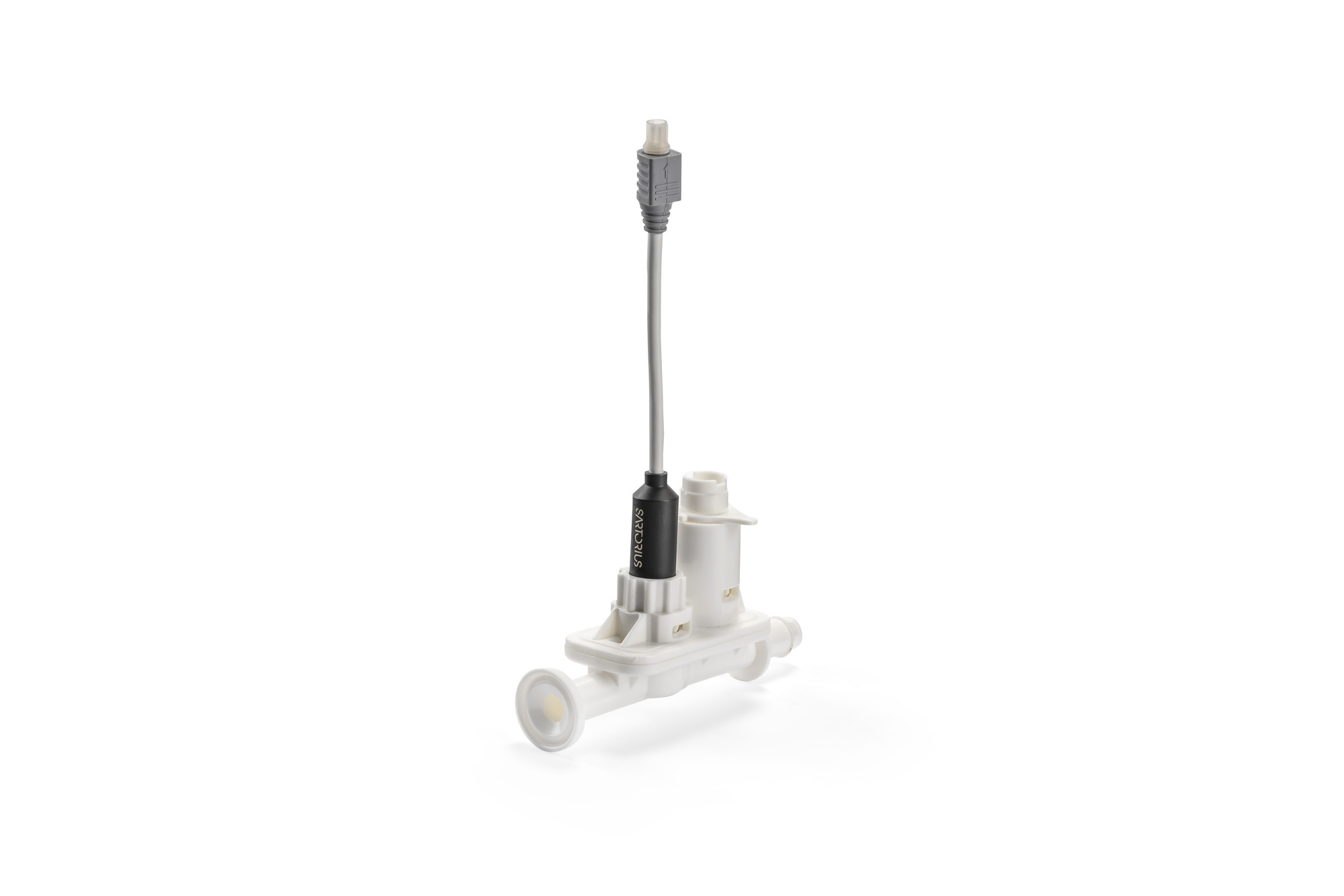

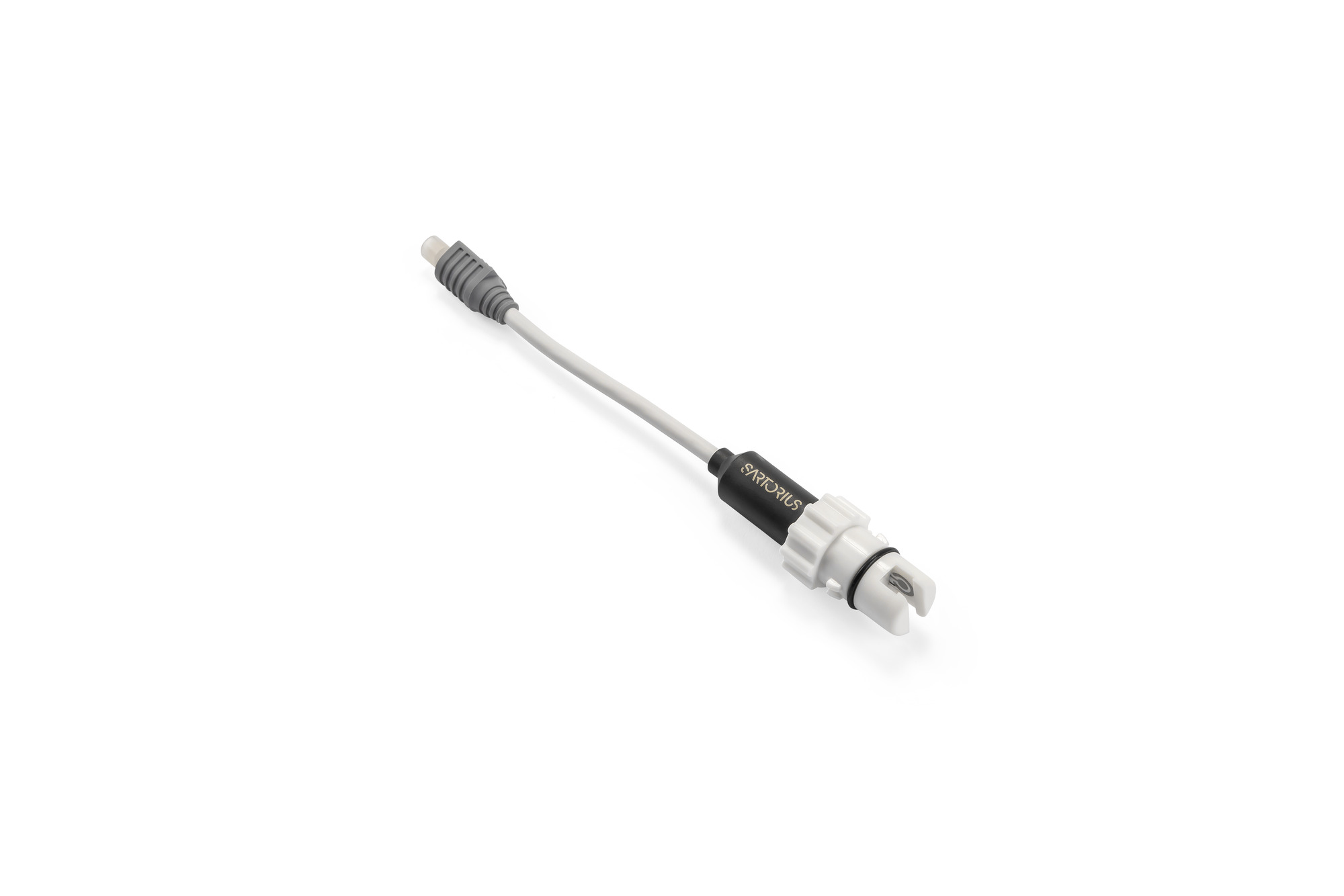

The BioPAT® Conductivity | pH single-use pipe with plug 3/8", connection HB-HB, is part of the BioPAT® Conductivity | pH solution. This solution consists of three main components: the single-use pipe, the conductivity sensor with connection cable and the pH electrode (optional). The sensor components are assembled into the single-use pipe. The Conductivity sensor and the connection cable with ODU connector are pre-isntalled and part of the delivery scope. The BioPAT® Conductivity | pH pipe can only be ordered in multiples of 10 units.

Item No.:
BPC0331
Qty. Graduation
10
*Custom/bulk order quotes are provided within 72 hours of request.
BioPAT® Conductivity | pH pipe with plug 3/8” HB-HB
BioPAT® Conductivity | pH pipe with plug 3/8” HB-HB

The BioPAT® Conductivity | pH single-use pipe with plug 3/8", connection HB-HB, is part of the BioPAT® Conductivity | pH solution. This solution consists of three main components: the single-use pipe, the conductivity sensor with connection cable and the pH electrode (optional). The sensor components are assembled into the single-use pipe. The Conductivity sensor and the connection cable with ODU connector are pre-isntalled and part of the delivery scope. The BioPAT® Conductivity | pH pipe can only be ordered in multiples of 10 units.

Item No.:
BPC0331

Overview

Specifications

Choose your BioPAT® Conductivity | pH

See more products

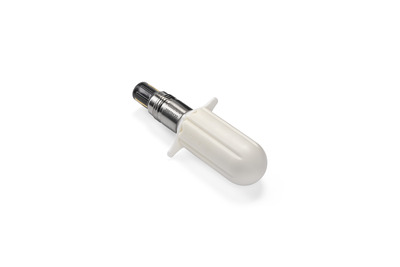

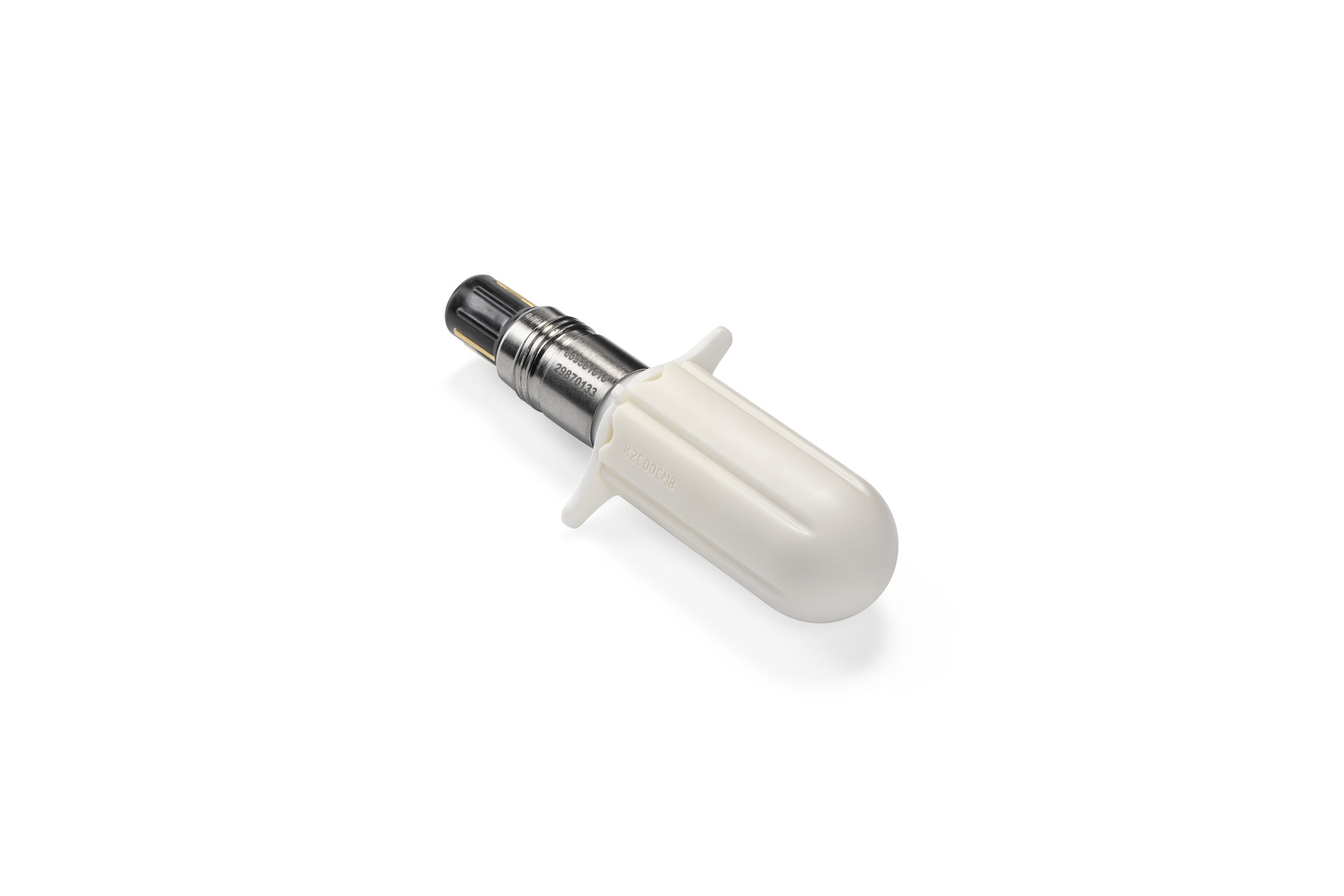

The product is a single-use sensor for flow applications with aqueous process media. The sensor is intended to determine the conductivity. A pH electrode can be added to the product to determine the pH value. The product consists of a SU ‘pipe’ into which the sensor components are assembled. A temperature sensor is integrated in both sensors for direct read-out and compensation of the conductivity and pH measurement. The hardware integration considers the current strategy for process automation and is carried out via a Knick read-out card. The BioPAT® Conductivity | pH single-use pipe is installed into the higher-level process tilted slightly downward by using the two connections.

Applications

  • Usage
    Single-use

Connections (Physical)

  • Connections
    3/8" HB-HB

Dimensions

  • Length
    122 mm

Operating Conditions

  • Operating Conditions - Temperature
    4-40°C
  • Operating Pressure
    0-1 bar

Product Information

  • Brand
    BioPAT®️ Conductivity | pH
