Celsius® Shippable Storage Module (SSM)

Tech Support Documents
Celsius® Shippable Storage Module (SSM) Celsius® Shippable Storage Module (SSM)


The Celsius® Shippable Storage Module (SSM) allows for storage of up to 100L of frozen product in 1L, 2L, 8.3L and 16.6L Celsius® Paks. The Celsius® SSM can be directly placed inside the Celsius® SSM Shipper for reliable frozen transport to remote locations.

Item No.:
FTH-SM00101-0024
Availability:
Piece
1
*Custom/bulk order quotes are provided within 72 hours of request.
Celsius® Shippable Storage Module (SSM)
Celsius® Shippable Storage Module (SSM)

The Celsius® Shippable Storage Module (SSM) allows for storage of up to 100L of frozen product in 1L, 2L, 8.3L and 16.6L Celsius® Paks. The Celsius® SSM can be directly placed inside the Celsius® SSM Shipper for reliable frozen transport to remote locations.

Item No.:
FTH-SM00101-0024
Availability:
Number of pieces
1

Overview

Specifications

Choose your Celsius® CFT Logistic Accessories

See more products

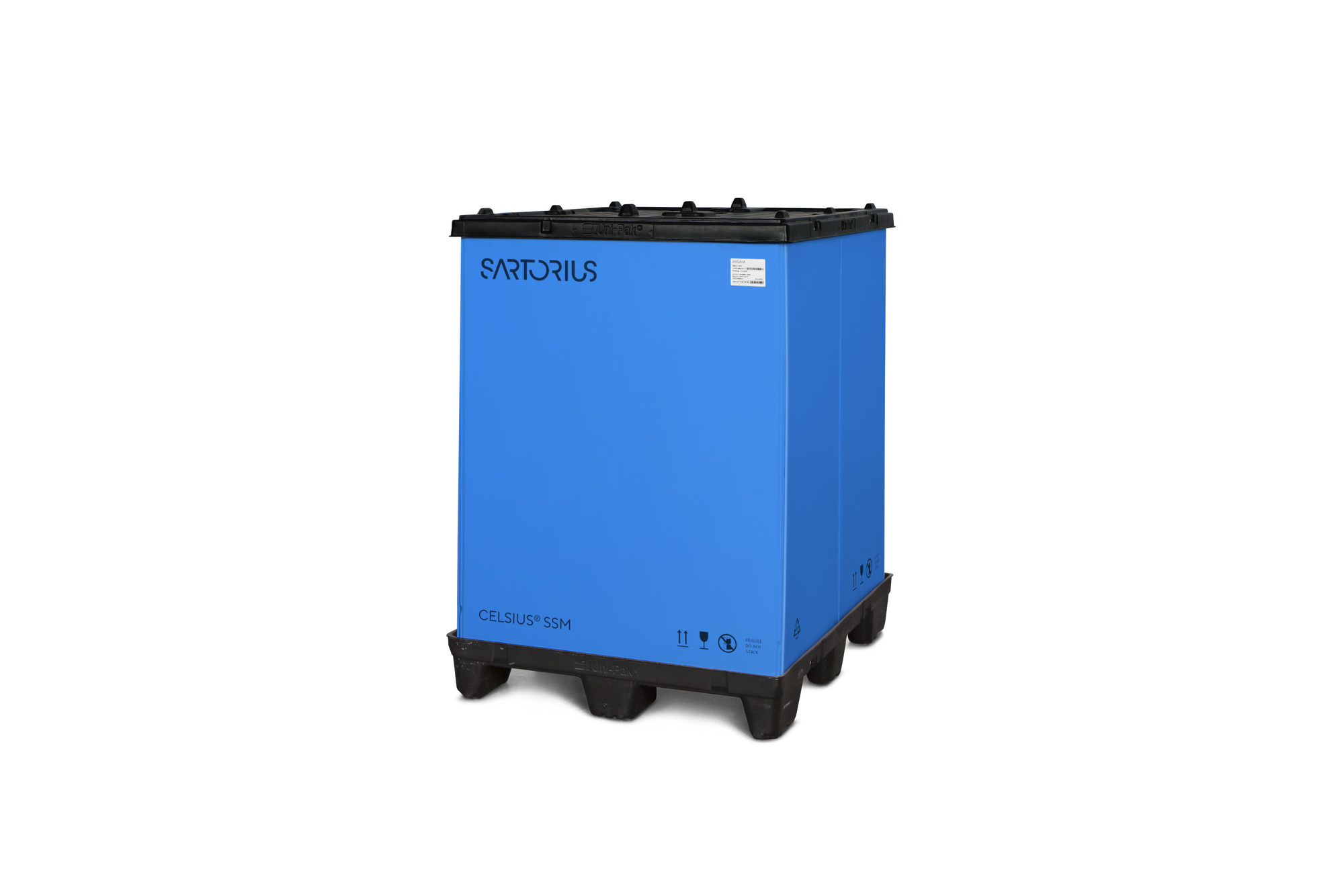

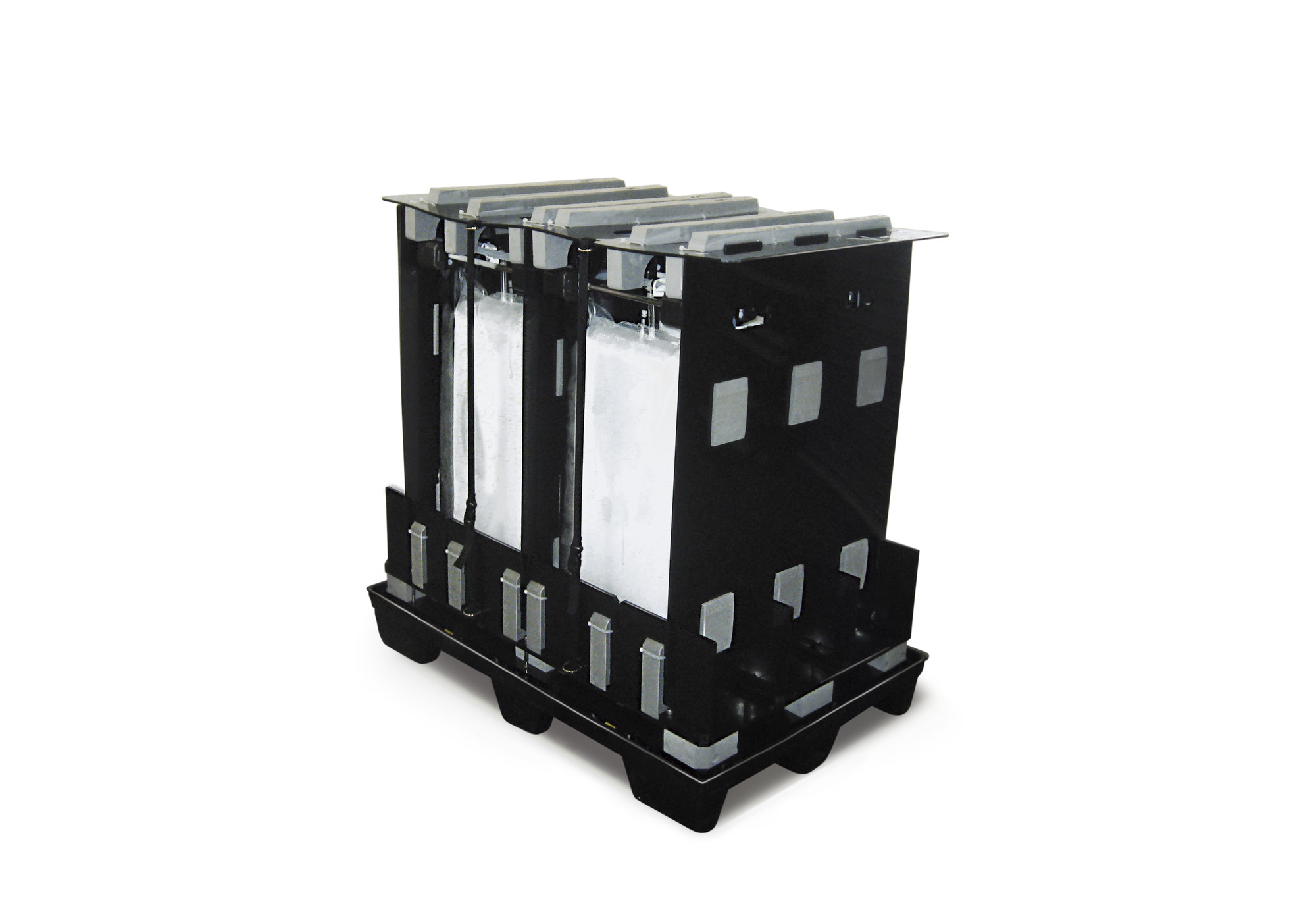

The Celsius® Shippable Storage Module (SSM) is a protective suspension system comprised of plastic parts that fit together to secure frozen Celsius® Paks. The SSM has a plastic pallet and a top cap that are the same dimension as a euro pallet (800 x 1200 mm) to minimize footprint. The Celsius® SSM is mounted onto a detachable trolley that allows for easy transport into freezers. The trolley can then be easily removed for simplified storage. The Celsius® SSM Trolley can also be docked with the Celsius® FT100 or Transfer Cart for easy transfer of frozen Celsius® Paks. The Celsius® SSM can be shipped in the SSM shipper to remote locations.

The Celsius® SSM can accommodate up to six 8.3L Celsius® Paks, six 16.6L Celsius® Paks, or a mix of each.

Applications

  • Application Area
    Frozen storage & shipping
  • Process Step
    • Process Intermediates Freezing and Thawing
    • Bulk Drug Substance Freezing and Thawing

Dimensions

  • Dimensions WxDxH
    Assembled: 32" × 47" × 50" (80 × 120 × 127 cm), Collapsed: 32" × 47" × 25" (80 × 120 × 62 cm)

Features

  • Load Capacity
    • Up to 6 × 16.6 L Celsius® Pak
    • Up to 3 × 8.3 L Celsius® Pak and up to 3 × 16.6 L Celsius® Pak
    • Up to 6 × 8.3 L Celsius® Pak
  • Maximum Number of Shippers per Pallet
    1
  • Mobility
    Trolley as an option
  • Reusable
    Yes
  • Stacking
    No

Materials of Construction

  • Materials of Construction
    • HDPE pallet and dunnage
    • XLPE foam
    • Stainless steel hardware

Product Information

  • Brand
    Celsius® CFT
  • Freezer Technology
    Vertical plate freezing
  • Pack Size
    1

Volume

  • Volume
    100 L
  • Working Volume
    4.2 – 100 L
