Claristep® Syringeless Filter, 0.45 µm Regenerated Cellulose

Tech Support Documents Submit Review
Claristep® Syringeless Filter, 0.45 µm Regenerated Cellulose Claristep® Syringeless Filter, 0.45 µm Regenerated Cellulose Claristep® Syringeless Filter, 0.45 µm Regenerated Cellulose Claristep® Syringeless Filter, 0.45 µm Regenerated Cellulose Claristep® Syringeless Filter, 0.45 µm Regenerated Cellulose

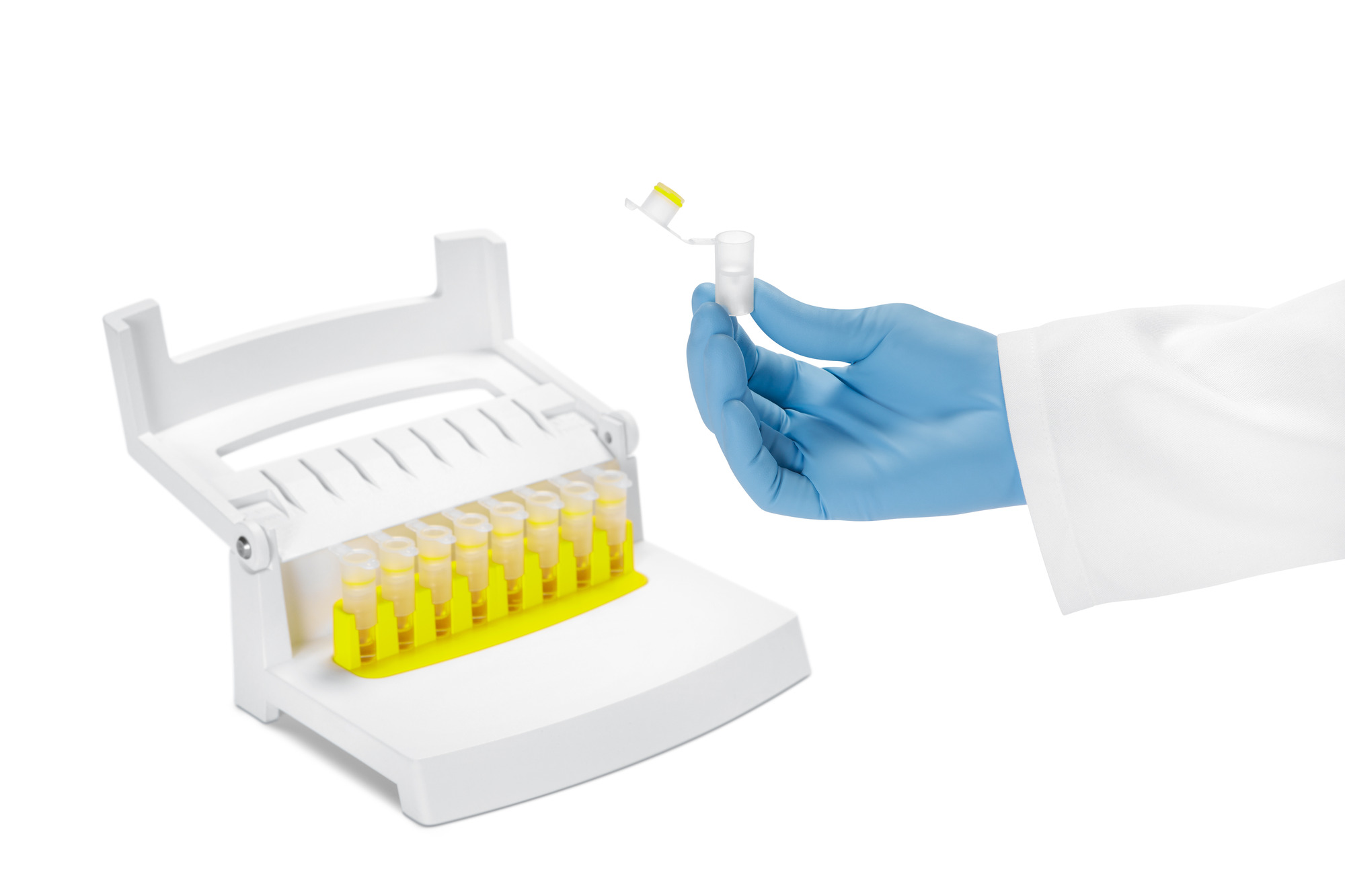

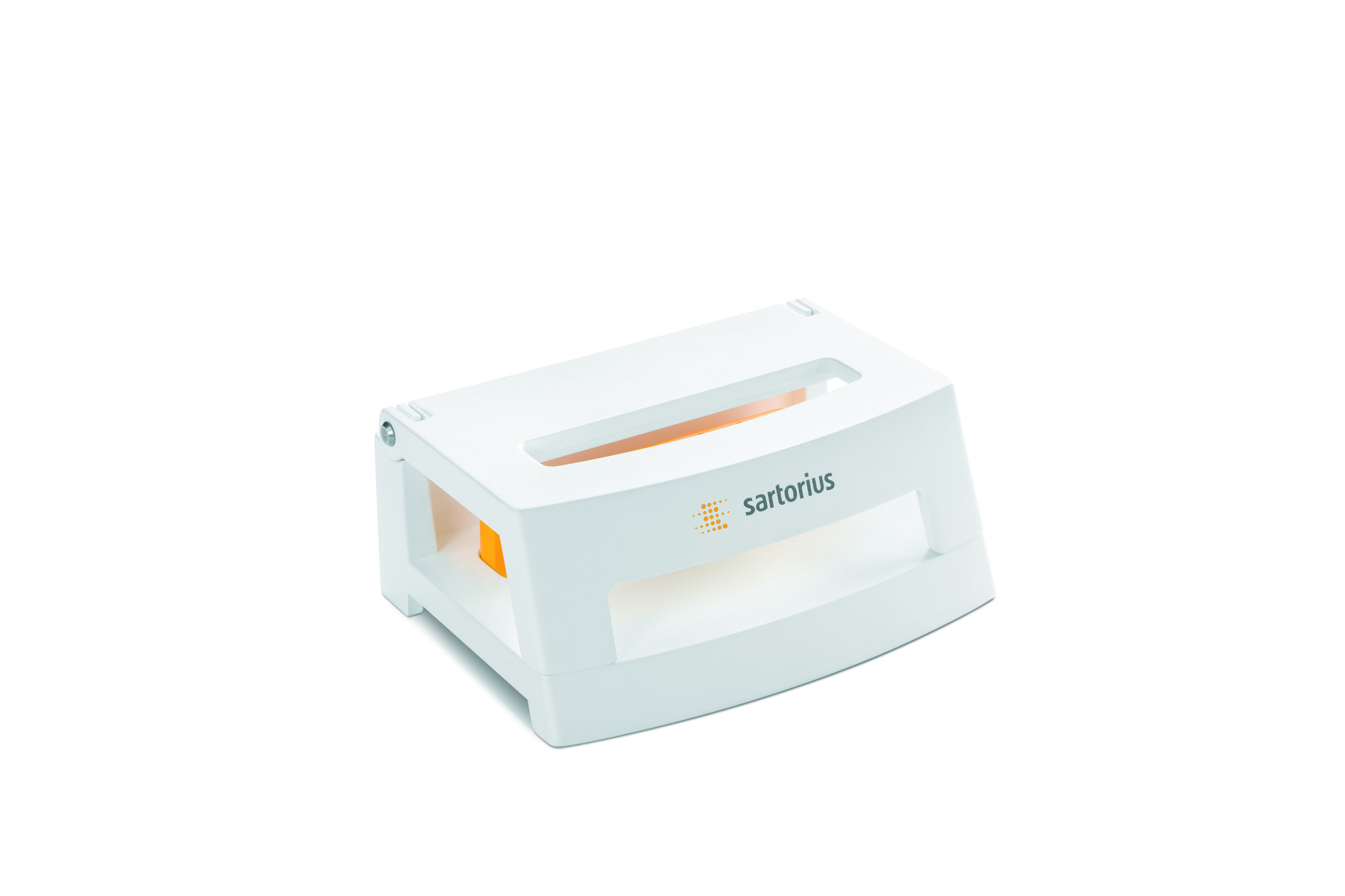

Claristep® Filter units are the ideal solution for sample preparation by particle removal prior to analytics. The filters are suitable for small sample volumes of 60 to 600 µl and are used without syringe. By using the accessory Claristep® Station up to eight samples can be processed simultaneously. The syringeless filter and the simple manual processing enable customers to simplify their sample clarification. Version 06FT---96 has a pore size of 0.45 µm and a package size of 96 non-sterile filters. Units can be sterilized by autoclaving or EO.

Price (CNY):
CNY2,479.51
Item No.:
17C06FT---96
Availability:
Pieces
96

*Custom/bulk order quotes are provided within 24 hours of request.

Choose your Claristep® Syringeless Filters

See more products

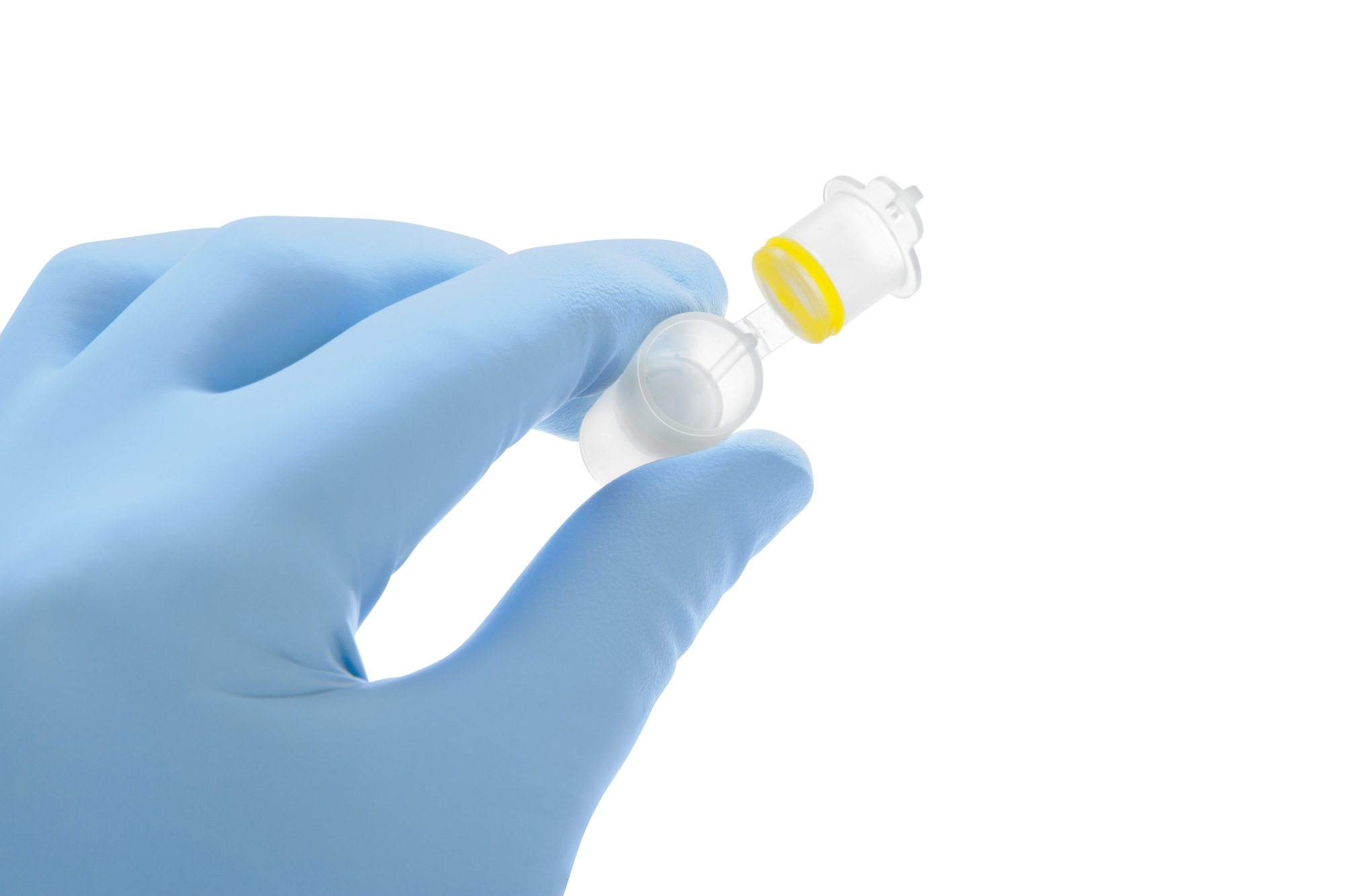

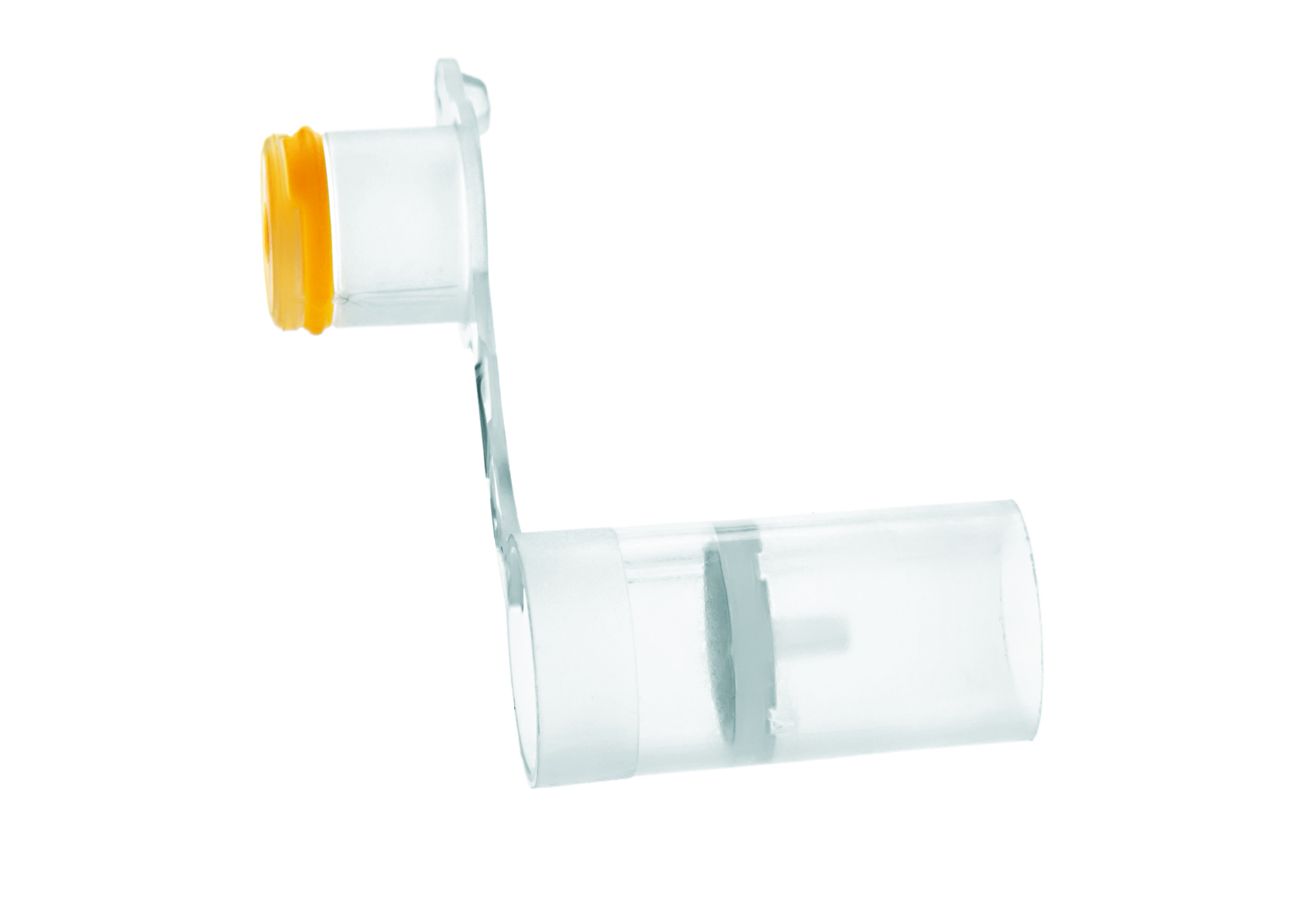

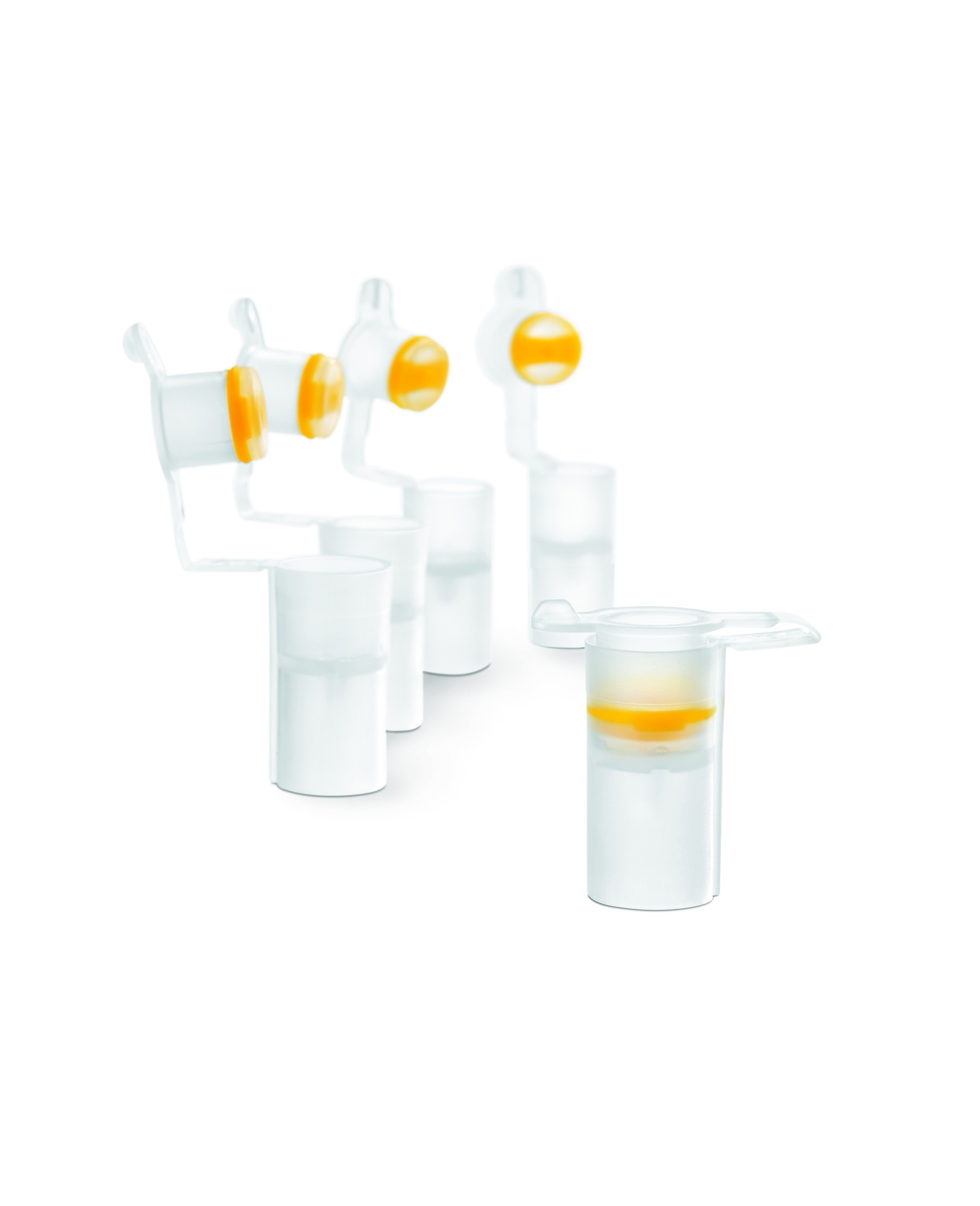

Make light work of a tedious task. Claristep® Filter units allow syringeless filtration with shortest contact time of filtrate and filter. They are composed of chemically stable components allowing filtration of aqueous liquids as well as harsh solvents. The reservoir and lid parts consist of one piece made of PP (polypropylene). In addition the lid part has a sealing made of TPE (thermoplastic elastomer) which enables a light lid closure. By closing the lid, the sample is filtered through the tightly connected filter membrane and collected by a receiving vial of choice.

Features

  • Straightforward processing

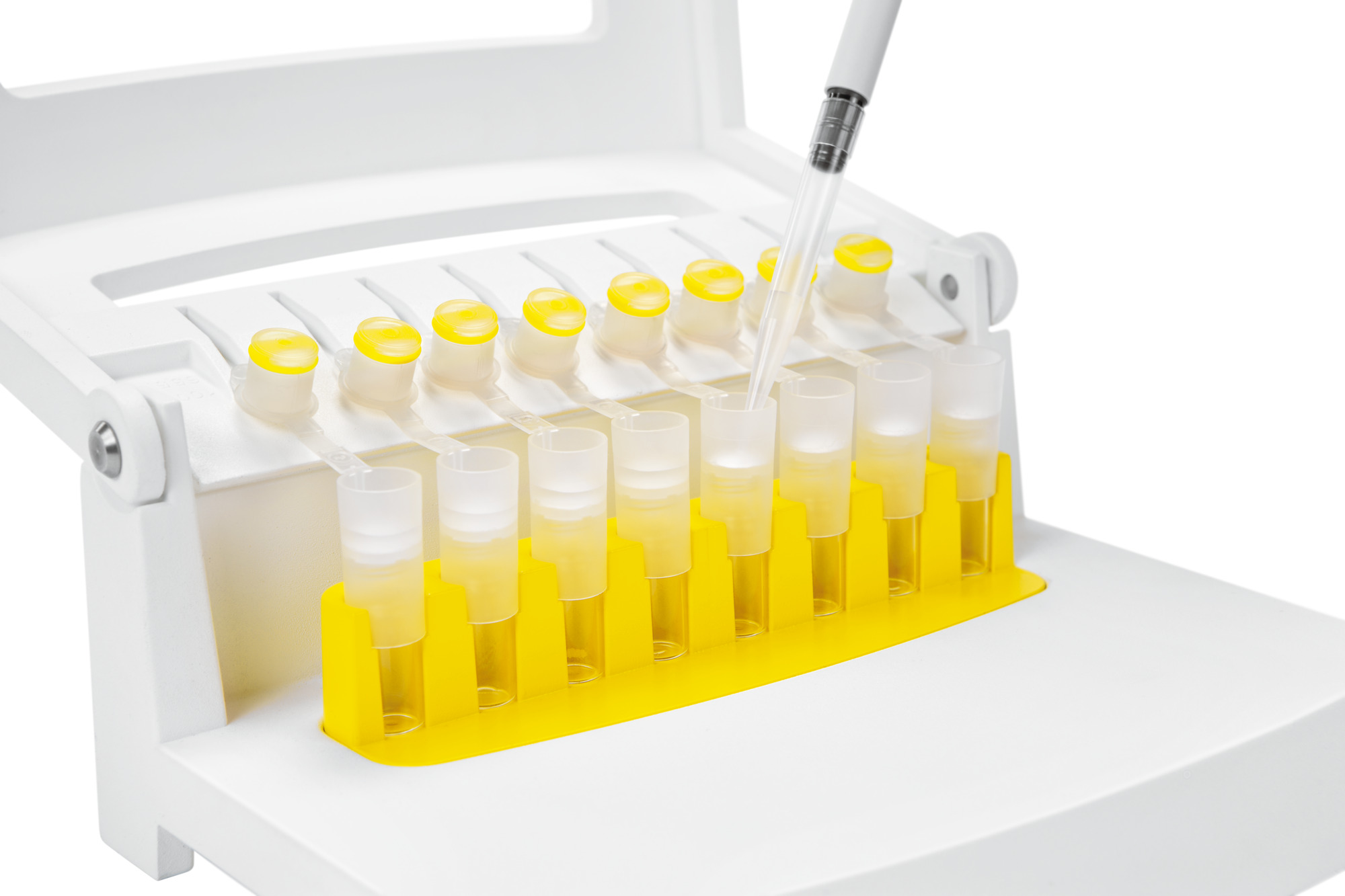

  • Multiplexing of up to 8 samples
  • Syringeless
  • Suitable for low sample volumes

Applications

  • Application
    • HPLC
    • LCMS
    • ICPMS
    • Cell Removal / Harvest
    • Clarification
  • Application Area
    Analytical sample preparation

Compliance Information

  • Extractables
    HPLC certified

Dimensions

  • Filter Diameter
    9.7 mm
  • Filtration Area
    0.7 cm²
  • Housing Dimensions
    14 × 30 mm

General Specifications

  • Filter Paper/Membrane Color
    Opaque/Yellow
  • Total Throughput
    Up to 600 µL
  • pH Range
    3.0 – 14.0

Materials of Construction

  • Housing Material
    Polypropylene (PP)
  • Material o-ring | seal
    Thermoplastic Elastomer (TPE)
  • Membrane Material
    Regenerated Cellulose (RC)

Operating Conditions

  • Maximum Allowable Working Temperature
    121 °C (250 °F)
  • Operating Pressure
    2.5 bar (36 psi)

Physicochemical Information

  • Pore Size
    0.45 µm
  • Wettability
    Hydrophilic

Product Information

  • Brand
    Claristep®
  • Device Type
    Syringeless Filters
  • Pack Size
    96
  • Packaging
    Bulk pouch packed
  • Sample Type
    • Aqueous
    • Solvents
    • Harsh liquids according to chemical compatibility

Sterility/Purity

  • Delivery Condition
    Non-Sterile
  • Sterilization Method
    • Ethylene oxide
    • Autoclave

Usage Protocols

  • Sterilization Procedures
    • Ethylene oxide
    • Autoclave, 121°C, 30 min

Volume

  • Hold-up Volume
    30 µL
