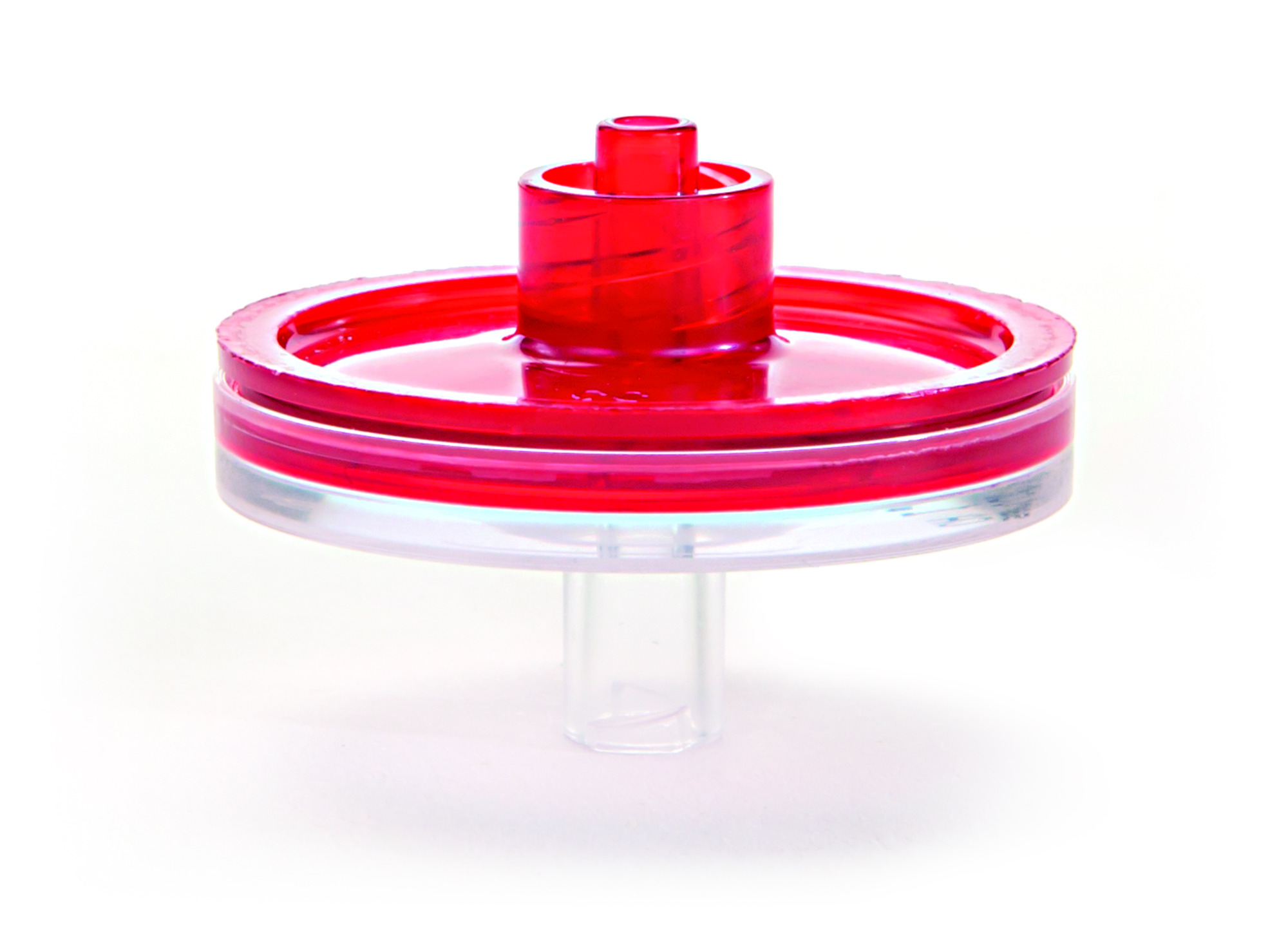

Minisart® NML Plus Glass Fiber 1.2 µm Cellulose Acetate Non Sterile Syringe Filter

Tech Support Documents Submit Review
Minisart® NML Plus Glass Fiber 1.2 µm Cellulose Acetate Non Sterile Syringe Filter


Minisart® NML Plus with glass fibre prefilter and surfactant-free cellulose acetate (SFCA) is optimized for particle-laden aqueous solutions or oils for a higher total throughput. Type 17825 with a membrane pore size of 1.2 µm can be used for clarification and has a male luer lock outlet. Version Q is a non-sterile bulk pack. Units can be sterilized by gamma irradiation or EO.

Pack Size
Price (CNY):
CNY8,337.53
Item No.:
17825----------Q
Availability:
Min. Order Qty.
10

*Custom/bulk order quotes are provided within 24 hours of request.

Choose your Minisart® With Glass Fibre Prefilter

See more products

Non-sterile Minisart® NML Plus syringe filters are supplied in bulk packs. This reduces waste and makes the handling easier whenever the application allows the removal of particles or cells from highly particle -laden liquids under non-sterile conditions. The glass fibre prefilter protects the membrane from early clogging and increases total throughput. The very low non-specific binding characteristics of the SFCA membrane makes the filters a perfect choice for biomolecule solutions. The housing is made of the acrylic resin MBS (Methacrylate butadiene styrene) which has a limited compatibility with alcohols but is free of phthalates. It is glueable, e.g. to tubing, what enables assembly and sterilization by the user. GF and membrane in one filter housing decrease the hold-up volume. If this is no limiting factor a GF-only version is available and can be coupled with a membrane-only syringe filter of choice.

  • Sterile and ready-to-use
  • GF-prefilter for higher total throughout
  • Very low non-specific binding
  • PVC-free
  • GF-only version available

Catalog

Laboratory Filtration Products Catalog
en 20.2 MB

Applications

  • Application
    Clarification and particle removal of aqueous solutions such as media, buffers and sera
  • Application Area
    • Clarification
    • Particle removal

Connections (Physical)

  • Connector Inlet
    Female Luer Lock
  • Connector Outlet
    Male Luer Lock

Dimensions

  • Filter Diameter
    ⌀ 28 mm
  • Filtration Area
    6.2 cm²

General Specifications

  • Filter Paper/Membrane Color
    Red
  • Flow Rate
    ≥ 350 mL/min for water at 1 bar (14.5 psi)
  • Total Throughput
    Up to 200 mL
  • pH Range
    4.0 – 8.0

Materials of Construction

  • Housing Material
    Methacrylate butadiene styrene (MBS)
  • Material Prefilters
    Glass Fiber (GF)
  • Membrane Material
    Cellulose Acetate (CA)

Operating Conditions

  • Maximum Allowable Working Temperature
    60 °C (140 °F)
  • Maximum Operating Pressure
    4.5 bar (65 psi)
  • Operating Pressure
    4.5 bar (65 psi)

Physicochemical Information

  • Bubble Point
    ≥ 0.7 bar (44 10 psi) with water
  • Burst Pressure
    ≥ 7.0 bar (102 psi)
  • Pore Size
    1.2 µm
  • Retention Rate
    0.7 µm²
  • Wettability
    Hydrophilic

Product Information

  • Brand
    Minisart® NML Plus
  • Device Type
    Syringe Filters
  • Pack Size
    500
  • Packaging
    Bulk packed
  • Sample Type
    Aqueous

Sterility/Purity

  • Delivery Condition
    Non-Sterile
  • Sterilization Method
    • Ethylene oxide
    • Gamma irradiation

Volume

  • Hold-up Volume
    ≤ 100 – 150 µL
