Minisart® PES15 Syringe Filter 1776D----------Q, 0.2 µm Polyethersulfone

Tech Support Documents Submit Review

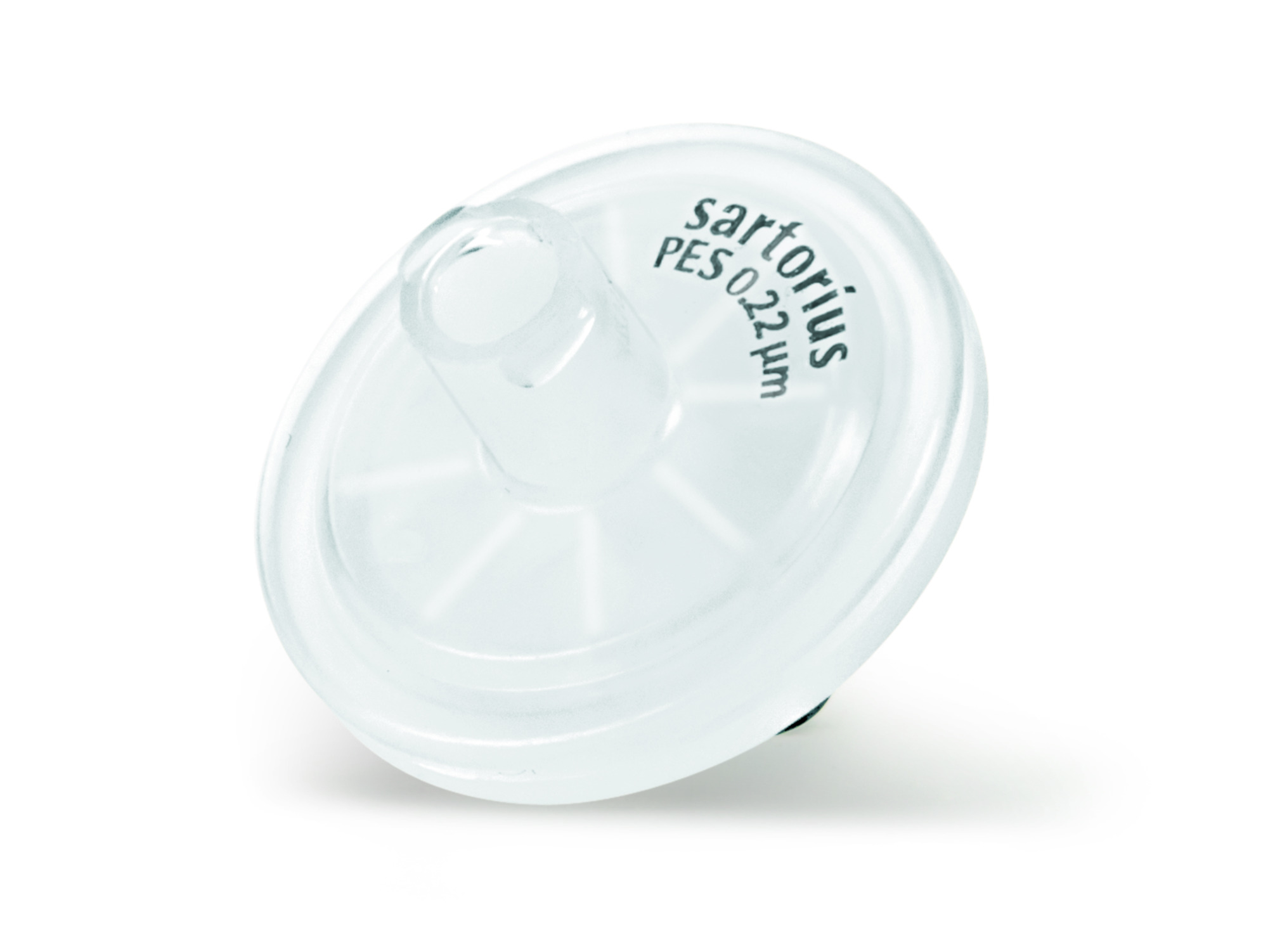

Minisart® PES15 Syringe Filter 1776D----------Q, 0.2 µm Polyethersulfone Minisart® PES15 Syringe Filter 1776D----------Q, 0.2 µm Polyethersulfone


Minisart® PES with polyethersulfone (PES) is optimal for highest flow rates and a pH of 2 - 13. Type 1776D with a pore size of 0.22 µm can be used for sterile filtration and has a male luer slip outlet. Version Q is a non-sterile bulk pack. Units can be sterilized by autoclaving or EO.

Price (CNY):
CNY7,134.02
Item No.:
1776D----------Q
Availability:

*Custom/bulk order quotes are provided within 24 hours of request.

Choose your Minisart® with PP Housing

See more products

Non-sterile Minisart® PES syringe filters are supplied in bulk packs. This reduces waste and makes the handling easier whenever the application allows clarification and cell removal under non-sterile conditions. In addition the non-sterile filters can be assembled and sterilised by the user. Due to the slightly asymmetric membrane structure, the PES surface almost behaves like a pre-filter and enables highest flow rates. The low binding membrane is tightly connected with the housing which allows bidirectional use. The housing is made of PP (polypropylene) which is compatibility with harsh solvents, acids and bases.

  • Non-sterile filters for assembly
  • Slightly asymmetric PES with superior flow rate
  • Low non-specific binding
  • Bidirectional use possible
  • High chemical compatibility

Catalog

Laboratory Filtration Products Catalog
en 20.2 MB

Applications

  • Application
    • Cleaning of protein solutions
    • Particle Removal
  • Application Area
    Sterile filtration

Connections (Physical)

  • Connector Inlet
    Female Luer Lock
  • Connector Outlet
    Male Luer Slip

Dimensions

  • Filter Diameter
    ⌀ 15 mm
  • Filtration Area
    1.7 cm²

General Specifications

  • Filter Paper/Membrane Color
    • White (opaque)
    • Printed
  • Flow Rate
    ≥ 40 mL/min for water at 1 bar (14.5 psi)
  • Total Throughput
    Up to 15 mL
  • pH Range
    3.0 – 14.0

Materials of Construction

  • Housing Material
    Polypropylene (PP)
  • Membrane Material
    Polyethersulfone (PES)

Operating Conditions

  • Maximum Allowable Working Temperature
    60 °C (140 °F)
  • Maximum Operating Pressure
    4.5 bar (65 psi)

Physicochemical Information

  • Bubble Point
    ≥ 3.2 bar (46 psi) with water
  • Burst Pressure
    ≥ 7.0 bar (102 psi)
  • Pore Size
    0.22 µm
  • Wettability
    Hydrophilic

Product Information

  • Brand
    Minisart® PES
  • Device Type
    Syringe Filters
  • Pack Size
    500
  • Packaging
    Bulk packed
  • Sample Type
    Aqueous

Sterility/Purity

  • Delivery Condition
    Non-Sterile
  • Sterilization Method
    • Ethylene oxide
    • Autoclave

Volume

  • Hold-up Volume
    ≤ 30 – 100 µL
