Resolute® BioSMB 80 for UL

Tech Support Documents
Resolute® BioSMB 80 for UL


Single-use multi-column chromatography solution for use in good manufacturing practice (GMP) production suites where UL certification is required. Designed for up to 500 L bioreactor applications, including perfusion bioreactors.

  • Highly efficient resin utilization
  • 3 to 5-fold increase in productivity
  • Easy-to-install flow kits (less than 30 minutes)
Item No.:
BIOSMB-PRO-080-UL
Availability:
*Custom/bulk order quotes are provided within 72 hours of request.
Resolute® BioSMB 80 for UL
Resolute® BioSMB 80 for UL

Single-use multi-column chromatography solution for use in good manufacturing practice (GMP) production suites where UL certification is required. Designed for up to 500 L bioreactor applications, including perfusion bioreactors.

  • Highly efficient resin utilization
  • 3 to 5-fold increase in productivity
  • Easy-to-install flow kits (less than 30 minutes)
Item No.:
BIOSMB-PRO-080-UL
Availability:

Overview

Specifications

Choose your Resolute® BioSMB Platform

See more products

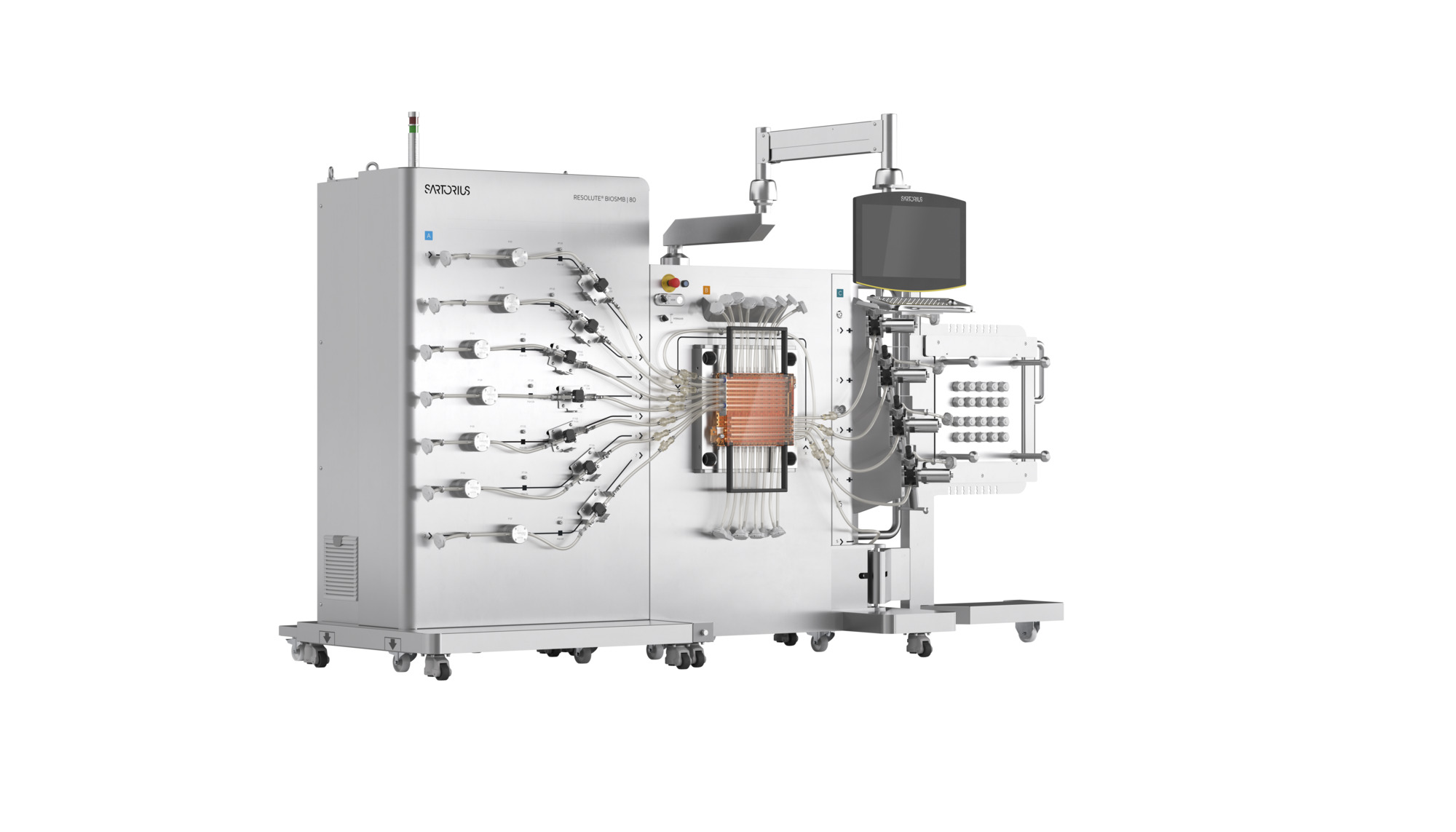

The Resolute® BioSMB 80 system is a multi-column chromatography solution for biopharmaceutical purification applications at clinical and commercial manufacturing scales. This single-use, integrated system is specifically designed to allow users to drive efficiency and cost savings into their chromatography operations without impacting purification performance or product quality.

Technical Note

Resolute BioSMB 80 and 350 Systems Technical Specification
en 567.6 kB

Applications

  • Application
    • mAB Production
    • Antibody Purification
    • Polishing
    • Capture
    • Affinity
    • Large Molecules
  • Application Area
    • Clinical manufacturing
    • Commercial manufacturing

Compliance Information

  • GMP Compliance
    Yes
  • IP Rating
    IP54 for control tower

Dimensions

  • Dimensions WxDxH
    2.7×1.4×2.2 m

General Specifications

  • Temperature Range
    4 – 40 °C

Operating Conditions

  • Maximum Operating Pressure
    4 bar

Power Requirements

  • Line Voltage
    208 VAC 50 | 60 Hz
  • Power Requirements
    32A – 15kW

Product Information

  • Brand
    Resolute®

Volume

  • Volume
    5 – 80 L/h
