Sartoclear® F&B Sheets 40 x 40 cm S5

Tech Support
Sartoclear® F&B Sheets 40 x 40 cm S5

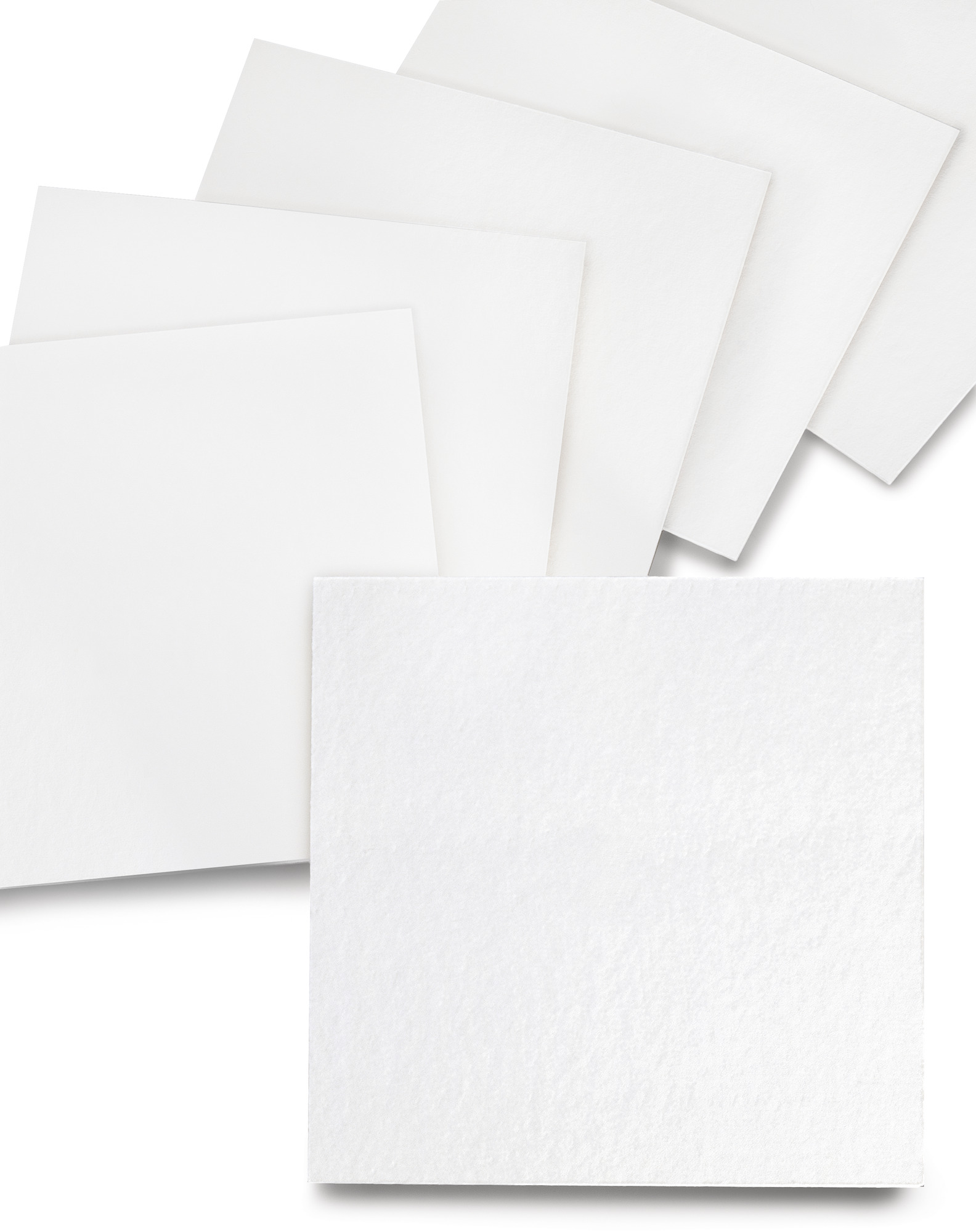

Sartoclear® F&B Depth filter sheets are used for clarification and microbe-retentive filtration in the food and beverage industry. The sheets are manufactured from high grade, natural raw materials such as cellulose and diatomaceous earth and are available in various sizes.
Item No.:
290S5-040040FN
Availability:
Pieces
100
*Custom/bulk order quotes are provided within 72 hours of request.
Sartoclear® F&B Sheets 40 x 40 cm S5
Sartoclear® F&B Sheets 40 x 40 cm S5
Sartoclear® F&B Depth filter sheets are used for clarification and microbe-retentive filtration in the food and beverage industry. The sheets are manufactured from high grade, natural raw materials such as cellulose and diatomaceous earth and are available in various sizes.
Item No.:
290S5-040040FN
Availability:
Number of pieces
100

Overview

Specifications

Choose your Sartoclear® Depth Filter Sheets for F&B

See more products

Product Information

Sartoclear® F&B Depth filter sheets are developed for coarse and microbial reduction filtrations in the food & beverage industries. The filter sheets are made for use in standard filter presses. Sartoclear® F&B sheets are made of a mixture of cellulosic fibers and filter-aids such as diatomaceous earth and perlites. The open 3-dimensional matrix has a high capacity for a wide range of particles.

Total Throughput

The structure of the cellulose forms a three-dimensional matrix. The Sartoclear® F&B Depth filter sheets have a large void volume of up to 85%. These features ensure outstanding total throughput and thereby cost-effective filtration.

Protection

The positive Zeta potential of the Sartoclear® F&B Depth filter sheets strengthens the mechanical retention capacity and clarifying effect, allowing additional adsorption of minute, negatively charged particles and colloids. This ensures that downstream filters are effectively protected and also lowers overall costs of consumables.

Applications

The Sartoclear® F&B Depth filter sheets are especially developed for wine, beer, fruit juices and spirits applications.

Flexibility

Filter sheet systems can be optimally adapted to the flow rates required for each application by raising or lowering the number of sheets installed.

Quality

Sartoclear® F&B Depth filter sheets are manufactured according to a DIN EN ISO 9001 certified quality management system. All materials of construction used to produce Sartoclear® F&B products are selected in compliance with the EU and US requirements for products intended to come in contact with foodstuff:

  • Meet the requirements for European Food Contact Materials Regulation as detailed in Regulation (EC) No 1935/2004.
  • Meet the United States Food and Drug Administration (US FDA) requirements as detailed in Code of Federal Regulations (CFR), Title 21, paragraphs 170–189. The FDA Compliance for indirect food additives is based on the information provided by our raw material suppliers.

Applications

  • Application
    Food and Beverage
  • Application Area
    Clarification
  • Industry
    Food & Beverage

Dimensions

  • Dimensions
    400 × 400 mm
  • Filtration Area
    400 x 400 mm

General Specifications

  • Filter Format
    Depth Filter Sheets
  • Grade
    S5
  • Thickness
    3.8 mm

Materials of Construction

  • Depth Filter Material
    Cellulose and Diatomaceous Earth
  • Filter Material
    Cellulose and Diatomaceous Earth

Physicochemical Information

  • Retention Rate
    0.3 µm

Product Information

  • Brand
    Sartoclear®
  • Pack Size
    100
  • Type
    Depth filter sheet

Usage Protocols

  • Sterilization Procedures
    The filtration system can be sterilized with steam of up to 134°C at a saturated steam pressure of 200 kPa | 29 Psi. Before applying steam to the filter pack it is important to loosen the tightened filter pack and slightly open all the vent and drain valves. In this way the steam penetration is optimized and steam shocks will be prevented.
