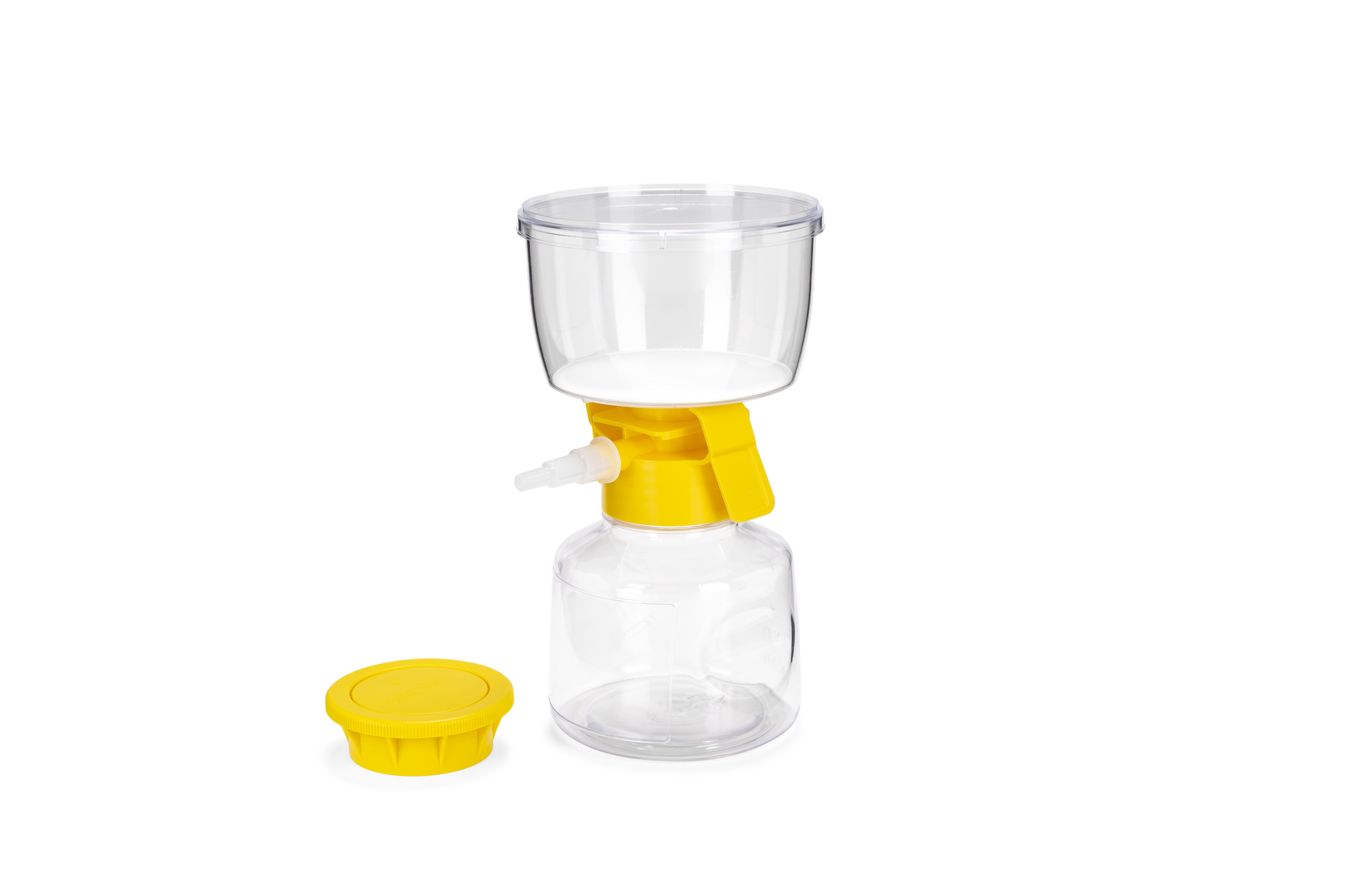

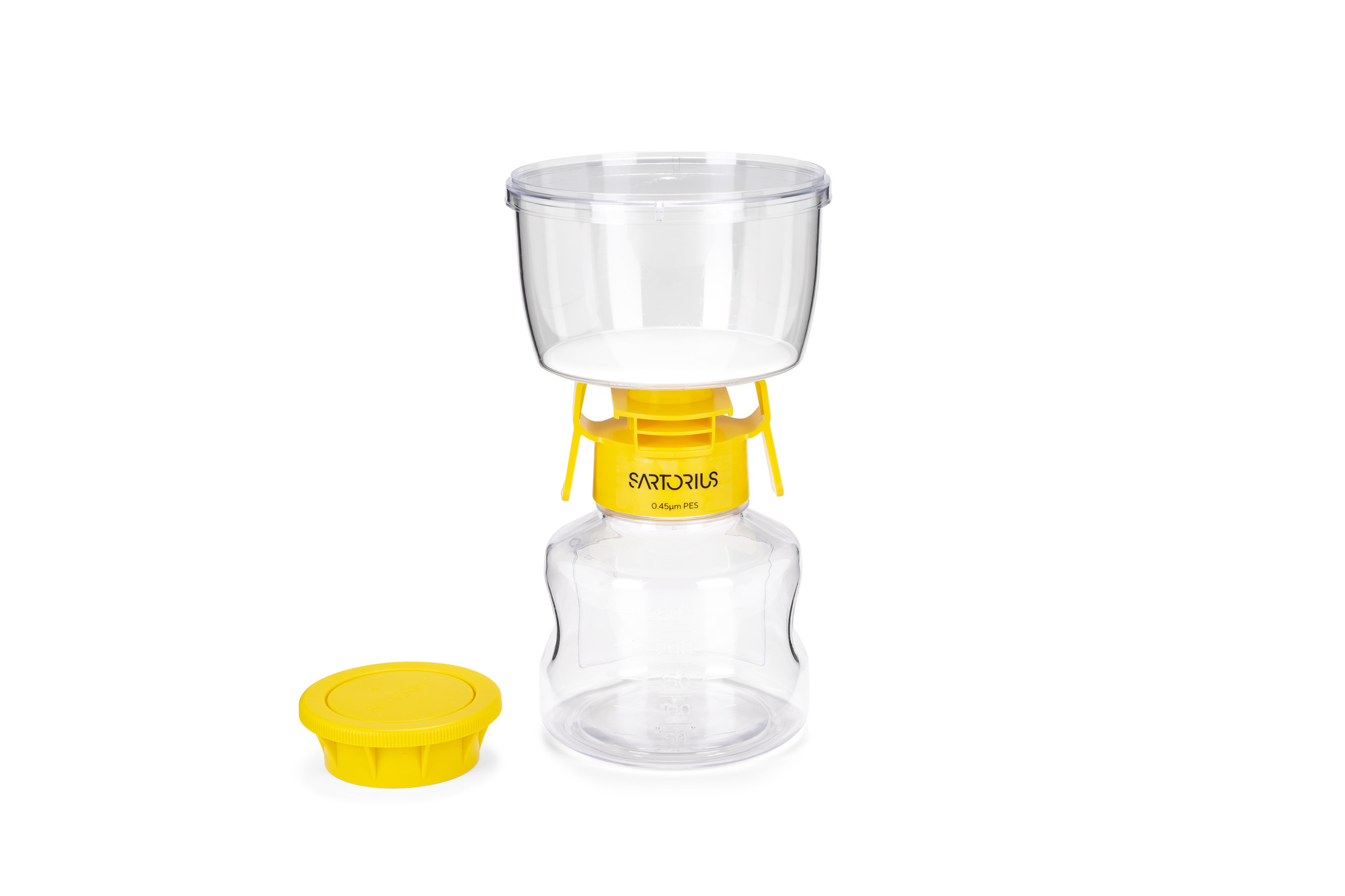

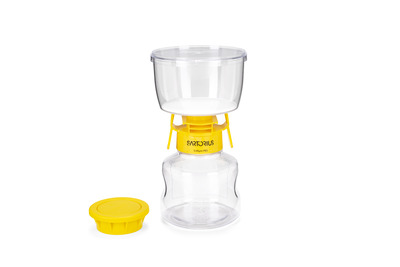

Sartolab® RF 250, PES Vacuum Filtration Units for 250 mL samples

Sartolab® RF 250, PES Vacuum Filtration Units were developed with state-of-the-art engineering to provide you with a reliable, convenient method for sterile vacuum filtration.

Top Features of Sartolab® Vacuum Filtration Units

  • Sterile vacuum filtration up to 250 mL
  • Developed with best engineering practices to ensure high quality
  • Utilizes PES membrane, offering highest flow rates and large filtration area
  • Available in different pore sizes: 0.1 µm, 0.22 µm and 0.45 µm
  • Compatible with Sartolab® Multistation

Popular Applications for Sartolab® Vacuum Filtration Units

  • Sterile filtration of buffers and reagents
  • Pharmaceuticals and drug testing
  • Cell culture analysis

Pore Size
Price (CNY):
CNY846.65
Item No.:
180F03---------E
Availability:

*Custom/bulk order quotes are provided within 24 hours of request.

Elevate your vacuum filtration using the state-of-the-art, convenient Sartolab® RF 250, PES Vacuum Filtration Units. These units can support vacuum filtration of samples up to 250 mL. They were designed for research purposes and the filtration of small volumes.

Polyethersulfone Membrane

Sartolab® RF 250 PES Vacuum Filtration Units include a unique polyethersulfone membrane. This membrane is the optimal choice for your filtration needs, combining low protein binding properties and the highest flow rates. With a pore size of 0.22 µm, the filtration units can meet the demands for multiple applications, including sterile filtration of cell culture, media, buffers and reagents.

State of the Art Engineering

Sartolab® RF 250 PES Vacuum Filtration Units were designed to optimize your user experience in vacuum filtration. We have optimized membrane support for the lowest hold-up volumes and reduction of foam formation (and thus denaturation of proteins). Sartolab® RF 250 PES Vacuum Filtration Units include a vacuum tube connector for stand-alone filtration (these units can also be used with the Sartolab® Multistation). Further, a screw cap has been included to store the filtrate. The screw caps of the bottles are delivered extra packed, individually wrapped to maintain sterility. Notably, the 45 mm neck thread of the Sartolab® units ensures a vacuum-tight seal to bottles with this standard thread.

Minimized Contamination Risk

Sartolab® RF 250 PES Vacuum Filtration Units are ready-to-use units, minimizing the risk of contamination. There is no further need for liquid transfer for storage as the unit.

Applications

  • Application
    • 8799048827488
    • 8799045747296

Components

  • With or Without Receiver Flask
    8799065965152

Dimensions

  • Filter Diameter
    80 mm
  • Filtration Area
    43 cm²
  • Neck Size Bottle Top Units
    ⌀ 45 mm

Features

  • Device/Instrument Compatibility
    8799056691808

General Specifications

  • Device Format
    8798981030496

Materials of Construction

  • Housing Material
    8804580033120
  • Membrane Material
    8799043650144

Physicochemical Information

  • Pore Size
    0.45 µm
  • Wettability
    8799106925152

Product Information

  • Brand
    8798958518880
  • Device Type
    8800877707872
  • Pack Size
    12
  • Packaging
    Single pouch packed
  • Sample Type
    • 8799062426208
    • 8799062622816

Sterility/Purity

  • Delivery Condition
    8798979064416
  • Sterilization Method
    8799086543456

Volume

  • Filling Volume
    250 mL
  • Funnel Volume
    250 mL
  • Receiver Flask Volume
    250 mL
  • Volume
    250 mL
  • Glass Microfiber Filters / Grade MGA

    CNY654.16

    Binder free glass microfiber filters are suitable for analytical and gravimetric analyses. They are also used as prefilter.

  • Sartolab® Multistation Filtration Units Stand

    CNY25,833.46

    The Sartolab® Multistation is specially designed for simultaneous, hands-free filtration of up to six samples.

    Top Features of the Sartolab® Multistation

    • Simultaneous filtration of one to six samples with one vacuum source
    • Hands-free filtration
    • Time-saving, with no installation time for each filter unit before use

    Popular Applications for the Sartolab® Multistation

    • Hands-free, parallel filtration of up to six samples

  • Vacuum tube for MultiStation
    Item no.
    1ZA---0007

    CNY112.16

    Vacuum tube for MultiStation

    • Material: silicone
    • Outer diameter: 15 mm
    • Inner diameter: 7 mm
    • Length: 200 mm

  • Microsart® e.jet Laboratory Liquid Transfer Pump

    CNY13,387.09

    The Microsart® e.jet Fluid Pump is a small, state-of-the-art liquid transfer pump for optimal vacuum filtration in your Microbiological QC lab.

    Top Features of the Microsart® e.jet Fluid Pump

    • Small foot print – no need of suction flasks between pump and manifold
    • Simultaneous transfer of filtered liquid to waste
    • Constant flow rates and defined maximum vacuum

    Popular Applications for the Microsart® e.jet Fluid Pump

    • Filtration of liquid samples in Microbiological Quality Control labs
