Single-use Assemblies

Tech Support
Single-use Assemblies

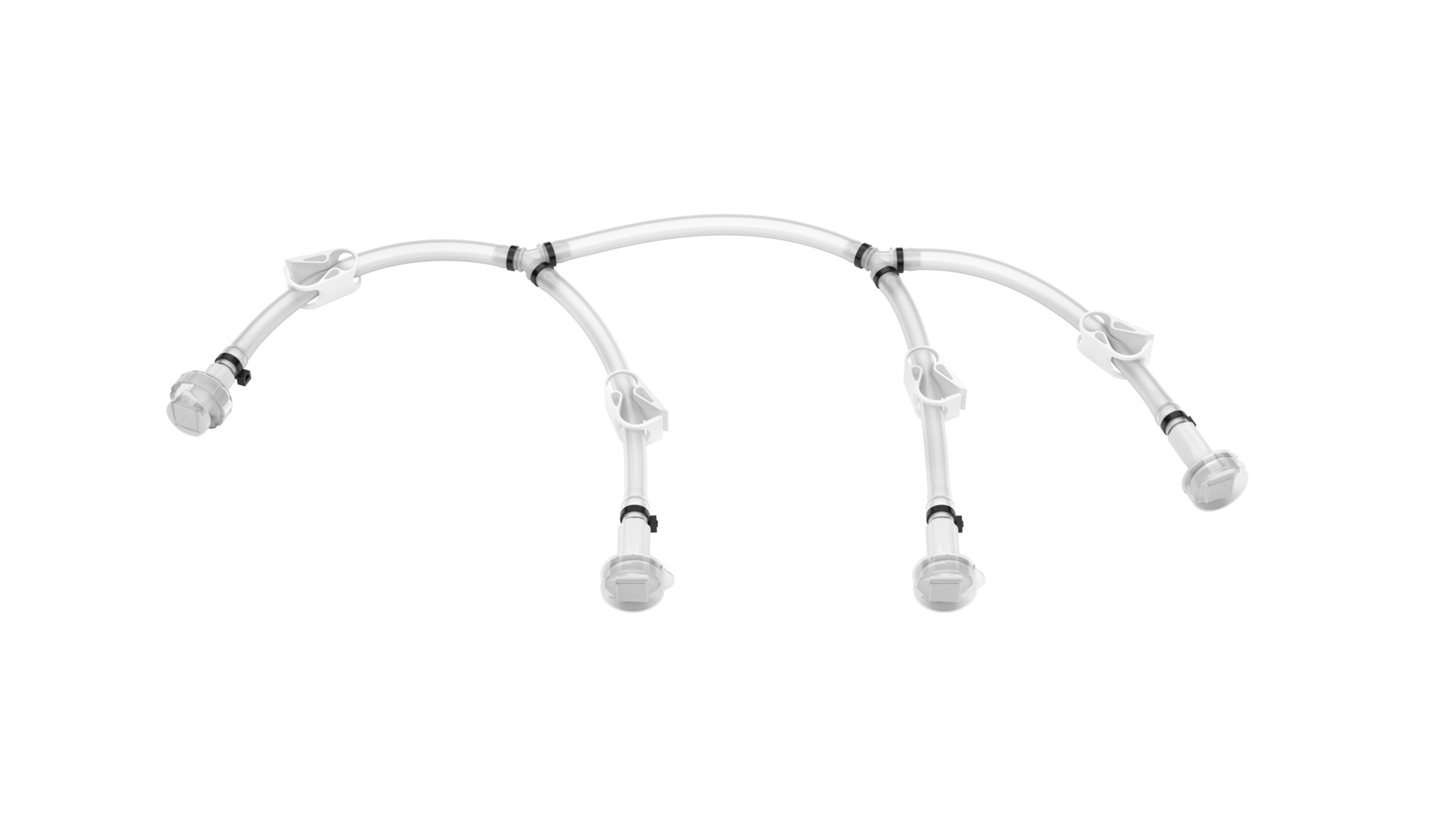

Single-use assemblies – ready-to-use tubing sets that establish a closed fluid path in bioprocessing lines.

  • Pre-assembled and gamma irradiated transfer sets based on Silicone or TPE tubing.
  • More than 100 configurations with Opta SFT, Tri-Clamp or quick-coupler ends.
  • Supplied in 1.5 m, 3 m or 5 m lengths, qualified to ≥1 bar.
  • Low extractables.
See more Products below
*Custom/bulk order quotes are provided within 72 hours of request.
Single-use Assemblies
Single-use Assemblies

Single-use assemblies – ready-to-use tubing sets that establish a closed fluid path in bioprocessing lines.

  • Pre-assembled and gamma irradiated transfer sets based on Silicone or TPE tubing.
  • More than 100 configurations with Opta SFT, Tri-Clamp or quick-coupler ends.
  • Supplied in 1.5 m, 3 m or 5 m lengths, qualified to ≥1 bar.
  • Low extractables.
Item No.:
M_Single_use_Assemblies

Overview

Specifications

Choose your product

Products (150)

  • Extension Lines Silicone
    Extension Lines Silicone
    Item no.
    FBT129794
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    1/4" × 3/8" (6.4 mm × 9.6 mm)
    Tube Length
    5000 mm
    Price
    Item no.
    FBT129794
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    1/4" × 3/8" (6.4 mm × 9.6 mm)
    Tube Length
    5000 mm
    Item no.
    FBT129792
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    1/4" × 3/8" (6.4 mm × 9.6 mm)
    Tube Length
    1500 mm
    Item no.
    FBT129796
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    3/8" × 5/8" (9.6 mm × 15.9 mm)
    Tube Length
    3000 mm
  • Extension Lines TPE
    Extension Lines TPE
    Item no.
    FBT129834
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    1/2" × 3/4" (12.7 mm × 19.1 mm)
    Tube Length
    1500 mm
    Price
    Item no.
    FBT129834
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    1/2" × 3/4" (12.7 mm × 19.1 mm)
    Tube Length
    1500 mm
    Item no.
    FBT129830
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    1/4" × 3/8" (6.4 mm × 9.6 mm)
    Tube Length
    5000 mm
    Item no.
    FBT129828
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    1/4" × 3/8" (6.4 mm × 9.6 mm)
    Tube Length
    1500 mm
  • Connector Change Lines
    Connector Change Lines
    Item no.
    FBT129886
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    1/2" × 3/4" (12.7 mm × 19.1 mm)
    Tube Length
    3000 mm
    Price
    Item no.
    FBT129886
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    1/2" × 3/4" (12.7 mm × 19.1 mm)
    Tube Length
    3000 mm
    Item no.
    FBT129885
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    1/2" × 3/4" (12.7 mm × 19.1 mm)
    Tube Length
    1500 mm
    Item no.
    FBT129887
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    1/2" × 3/4" (12.7 mm × 19.1 mm)
    Tube Length
    5000 mm
  • Reinforced Lines
    Reinforced Lines
    Item no.
    FBT129935
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    1" × 1-3/8" (25.4 mm × 34.9 mm)
    Tube Length
    5000 mm
    Price
    Item no.
    FBT129935
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    1" × 1-3/8" (25.4 mm × 34.9 mm)
    Tube Length
    5000 mm
    Item no.
    FBT129933
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    1" × 1-3/8" (25.4 mm × 34.9 mm)
    Tube Length
    1500 mm
    Item no.
    FBT129929
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    3/4" × 1-1/8" (19.1 mm × 28.6 mm)
    Tube Length
    5000 mm
  • Pumping Lines
    Pumping Lines
    Item no.
    FBT129904
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    1" × 1-3/8" (25.4 mm × 34.9 mm)
    Tube Length
    3000 mm
    Price
    Item no.
    FBT129904
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    1" × 1-3/8" (25.4 mm × 34.9 mm)
    Tube Length
    3000 mm
    Item no.
    FBT129889
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    3/8" × 5/8" (9.6 mm × 15.9 mm)
    Tube Length
    3000 mm
    Item no.
    FBT129896
    Connector(s)
    1-1/2" Tri-clamp
    Tube Size (ID – OD)
    1/2" × 7/8" (12.7 mm × 19.1 mm)
    Tube Length
    5000 mm
  • Gender Change Lines
    Gender Change Lines
    Item no.
    FBT129884
    Connector Inlet
    1/2" MPX Female
    Tube Size (ID – OD)
    1/2" × 3/4" (12.7 mm × 19.1 mm)
    Tubing
    TPE (C-Flex®)
    Price
    Item no.
    FBT129884
    Connector Inlet
    1/2" MPX Female
    Tube Size (ID – OD)
    1/2" × 3/4" (12.7 mm × 19.1 mm)
    Tubing
    TPE (C-Flex®)
    Item no.
    FBT129872
    Connector Inlet
    1/2" MPX Female
    Tube Size (ID – OD)
    1/2" × 3/4" (12.7 mm × 19.1 mm)
    Tubing
    Silicone (Tuflux® SIL)
    Item no.
    FBT129881
    Connector Inlet
    1/2" MPX Male
    Tube Size (ID – OD)
    1/2" × 3/4" (12.7 mm × 19.1 mm)
    Tubing
    TPE (C-Flex®)
  • Steam-Thru® Lines
    Steam-Thru® Lines
    Item no.
    FBT129858
    Connector Inlet
    1/2" MPX Female
    Tubing
    TPE (C-Flex®)
    Tube Length
    1500 mm
    Price
    Item no.
    FBT129858
    Connector Inlet
    1/2" MPX Female
    Tubing
    TPE (C-Flex®)
    Tube Length
    1500 mm
    Item no.
    FBT129860
    Connector Inlet
    1/2" MPX Female
    Tubing
    TPE (C-Flex®)
    Tube Length
    5000 mm
    Item no.
    FBT129859
    Connector Inlet
    1/2" MPX Female
    Tubing
    TPE (C-Flex®)
    Tube Length
    3000 mm

  • You could not find what you were looking for?

    Sign in to view all the products you have already ordered from Sartorius and that are personally available to you in your extended portfolio. Learn more

    Tell us what is missing
Results per page: | |

Single-use Transfer Assemblies

Ready-to-use tube sets simplify liquid handling in all process steps from media preparation to final fill. Built around low-extractable Tuflux® SIL silicone or weldable C-Flex® 374 tubing, they establish a closed, single-use fluid path in minutes.

Key features

  • More than 100 tubing assemblies are available for pumping, welding and sealing, steaming or high-pressure workflows.
  • Connector options include Opta® SFT sterile connectors, 1.5" Tri-Clamp fittings, MPC and MPX quick couplers, and SteamThru™ valves.
  • Standard lengths are 1.5 m, 3 m and 5 m. Additional configurations are available through a configure-to-order service.
  • Tuflux® SIL tubing (60 Shore A) supports long pump life and high flow rates, whereas C-Flex® TPE enables sterile welds and seals.
  • Every joint is qualified to at least 1 bar. Reinforced, Oetiker-clamped lines withstand up to 4 bar.

Applications

  • Media and buffer preparation, storage and transfer.
  • Cell harvest, downstream intermediates and drug substance handling.
  • Drug product formulation, fill and finish, freeze–thaw operations.
  • Bridging single-use assemblies with stainless steel or hybrid systems.

Specifications

  • Tubing materials: Tuflux® SIL platinum-cured silicone or C-Flex® 374 TPE.
  • Standard lengths: 1.5 m / 3 m / 5 m.
  • Pressure rating: ≥1 bar (standard); up to 4 bar with braided tubing and Oetiker metal clamps.

Applications

  • Application Area
    Transferring
  • Process Step
    • Drug Substance Purification
    • Drug Product Formulation
    • Media Preparation
    • Buffer Preparation
    • Cell Harvest & Downstream Processing Intermediates
