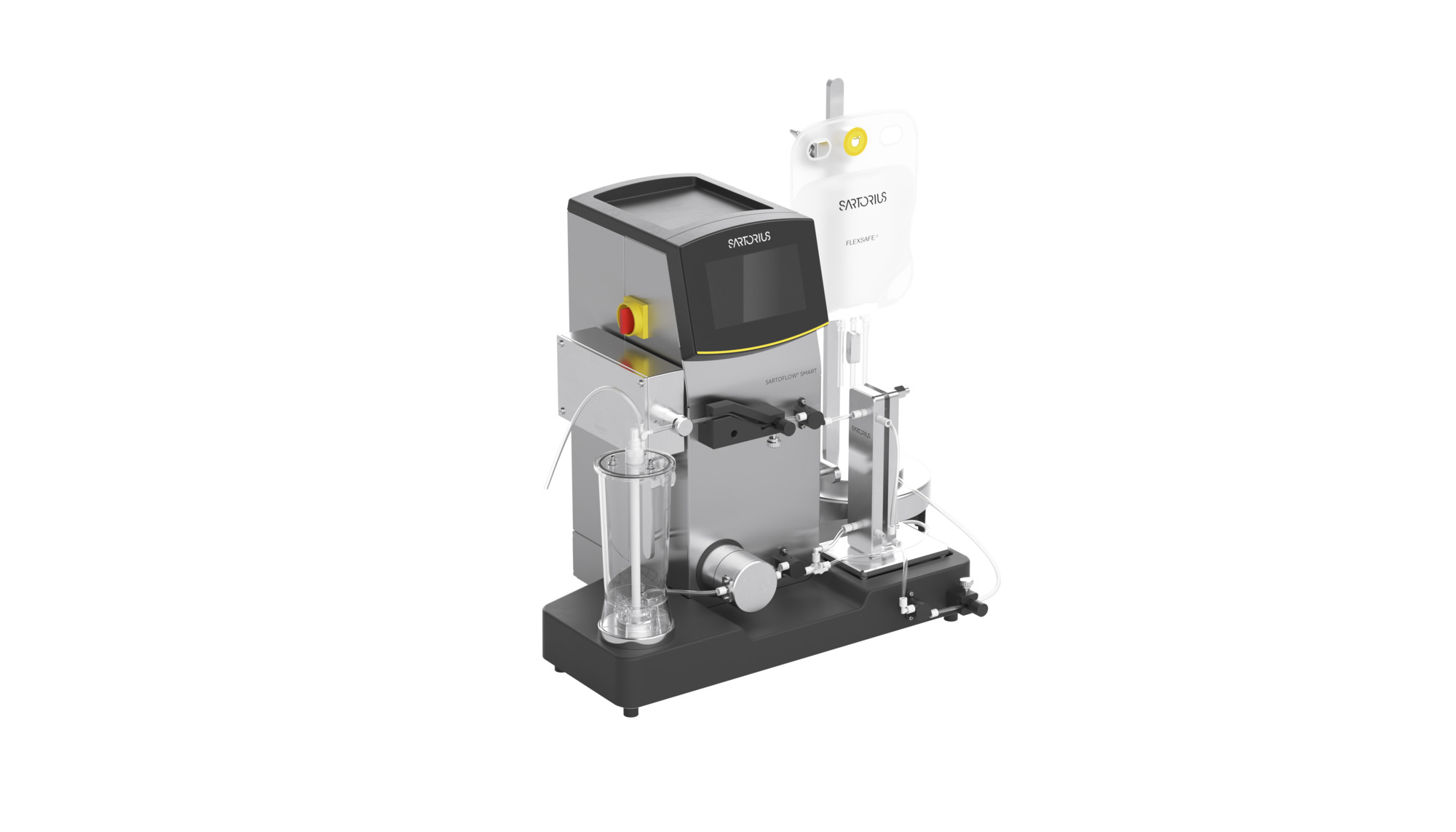

Sartoflow® Smart

Tech Support
Sartoflow® Smart Sartoflow® Smart Sartoflow® Smart Sartoflow® Smart


Smart & Easy - The TFF System from PD to GMP

Excellent flexibility

50 cm² - 0.14 m² membrane size | 1 L PSU vessel or 150 mL - 1 L single-use Flexboy® bags for recirculation

Intuitive and comfortable

User-friendly through high level of automation with automatic retentate valve and external feeding pump

Highest product yields

Low recirculation volume at 20mL and low shear 4-piston membrane pump

Item No.:
SFSMART
Piece
1
*Custom/bulk order quotes are provided within 72 hours of request.
Sartoflow® Smart
Sartoflow® Smart

Smart & Easy - The TFF System from PD to GMP

Excellent flexibility

50 cm² - 0.14 m² membrane size | 1 L PSU vessel or 150 mL - 1 L single-use Flexboy® bags for recirculation

Intuitive and comfortable

User-friendly through high level of automation with automatic retentate valve and external feeding pump

Highest product yields

Low recirculation volume at 20mL and low shear 4-piston membrane pump

Item No.:
SFSMART
Number of pieces
1

Overview

Specifications

Choose your Tangential Flow Filtration (TFF) Systems

See more products

Application & Configuration

The Sartoflow® Smart is suitable for use in laboratory environments for process development and clinical trials as well as for cGMP environments.

It can be configured to accept either Sartocon® Slice 200 or Sartocon® Slice ECO UF cassettes. An optional holding device for 50 cm2 TFF modules e.g. Sartocon® Slice 50 is available.

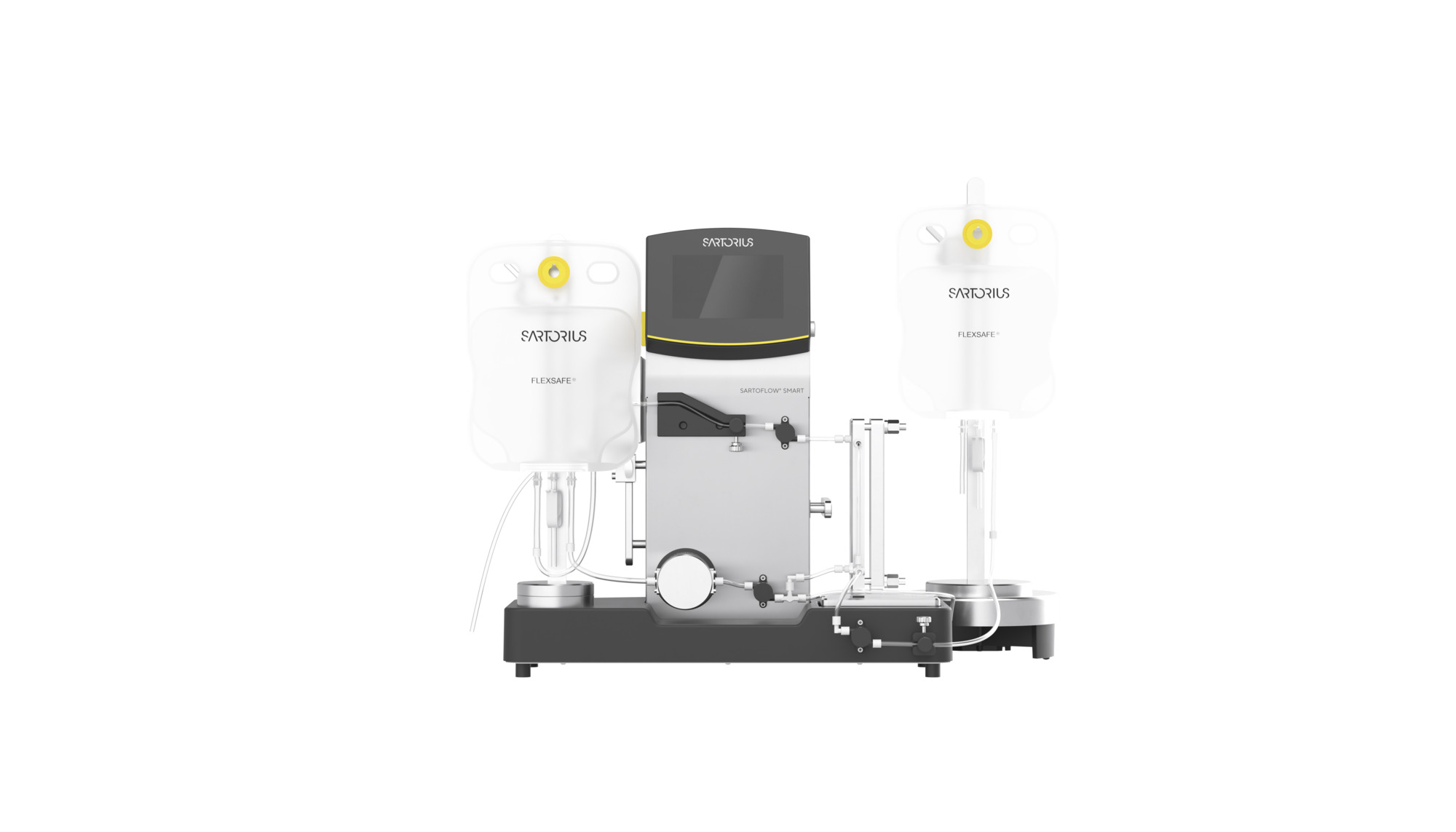

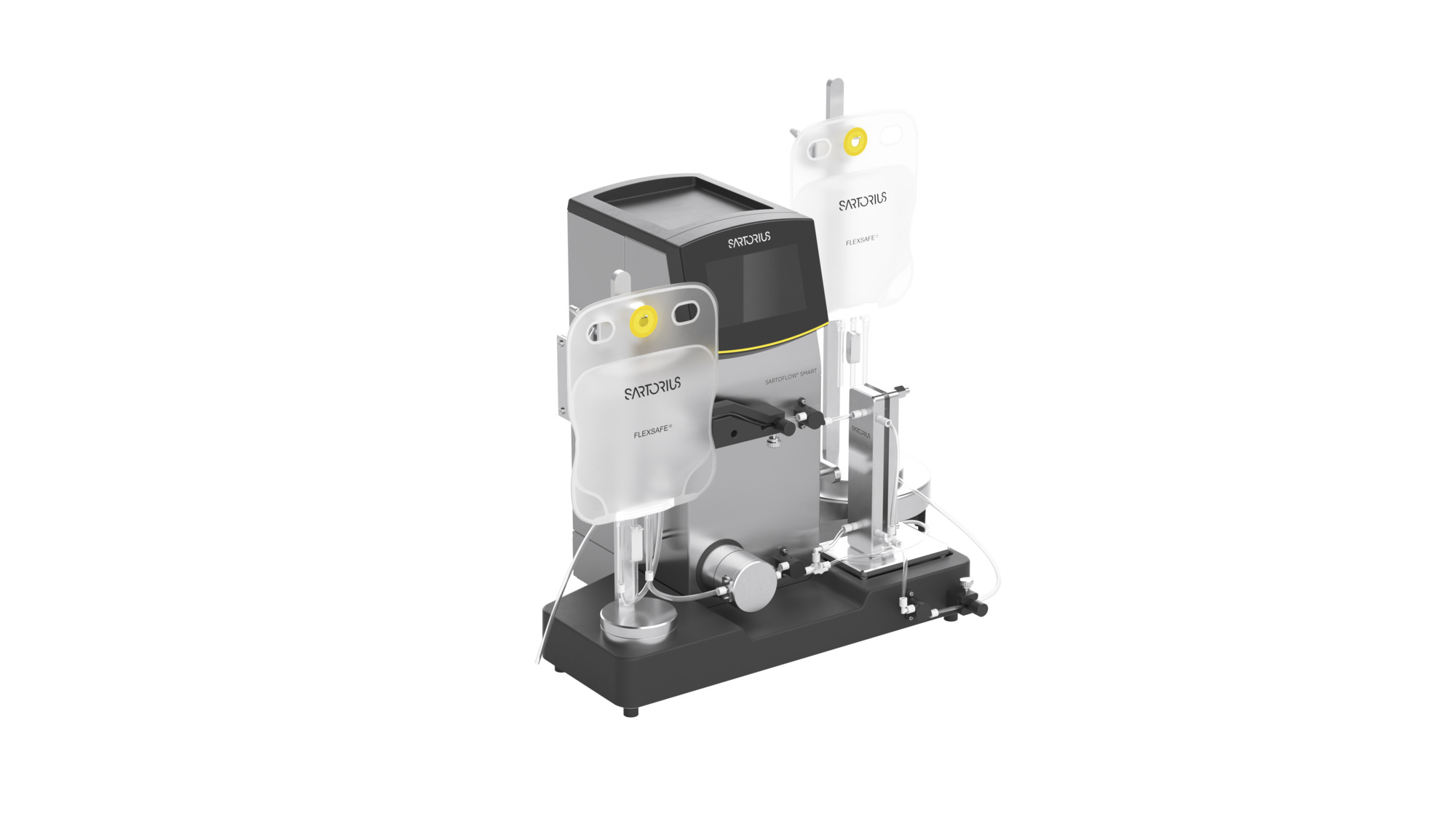

The recirculation tank utilizes a load cell for level control and can be replaced by a recirculation bag stand with Flexboy® bags.

Pivotal for Process Scalability

The Sartoflow® Smart TFF system is the ideal tool for developers establishing and refining process parameters in scale-up and scale-down studies. Achieve stable values for retentate pressure or transmembrane pressure (TMP) by applying the automated retentate valve and diafiltration pump.

This enables

  • Low minimum sample volume
  • Low minimum recirculation volume
  • Easy data access
  • High level of automation for data continuity and reproducibility
  • Full transferability of process data to large-scale systems

TFF Cassettes for the Sartoflow® Smart

Sartocon® Slice 50 with 50 cm² membrane area

  • Hydrosart® membrane - MWCO 2, 5, 10, 30kD
  • PESU membrane - MWCO 1, 5, 8, 10, 30, 50, 100, 300 kD

Sartocon® Slice Eco with 0.14 m² membrane area

  • Hydrosart® membrane - MWCO 10, 30, 100 kD
  • PESU membrane - MWCO 10, 30, 100 kD

Sartocon® Slice 200 with 0.02 m² membrane area

  • Hydrosart® membrane - MWCO 2, 5, 10, 30, 100 kD
  • PESU membrane - MWCO 1, 5, 8, 10, 30, 50, 100, 300 kD

Applications

  • Application
    • Purification of mAbs, ADC, vaccines, viral vectors, and recombinant proteins
    • Ultrafiltration
    • Diafiltration

Connections (Physical)

  • Connector(s)
    Luer lock

Dimensions

  • Dimensions WxDxH
    602 × 440 × 610 mm
  • Membrane Area
    50 cm² - 0.14 m²

General Specifications

  • Cassette Format
    • Slice Cassettes
    • Slice 50 Cassettes
    • Slice 200 Cassettes
    • Standard Cassettes
  • Filter Format
    Cassettes
  • Pump Output
    1 – 100 L/h @ 3 bar (43.5 psi)

Materials of Construction

  • Recirculation Vessel
    Polysulfone (PSU)

Operating Conditions

  • Maximum Operating Pressure
    3 bar (44 psi)
  • Minimum Operating Volume
    < 20 mL

Power Requirements

  • Power Requirements
    230 VAC | 50 Hz 2 Amp;120 VAC | 60 Hz 3 Amp

Product Information

  • Brand
    Sartoflow®

Volume

  • Bag Volume
    1.5 - 3 L (SU)
  • Hold-up Volume
    < 20 mL
  • Recirculation Vessel Volume
    1 L (MU)

Weight

  • Total Weight
    ~ 35 kg (77 lbs.)
